Alloy Steel Clevis Lug Link
Features
● It is a G70 product. So it can be only used for lashing and pulling, but not lifting!
● It is forged by alloy steel. The strict heat treatment ensures its intensity and toughness.
● It can be matched with G70 chains.
● Ultimate load is 2 times the Working Load Limit.

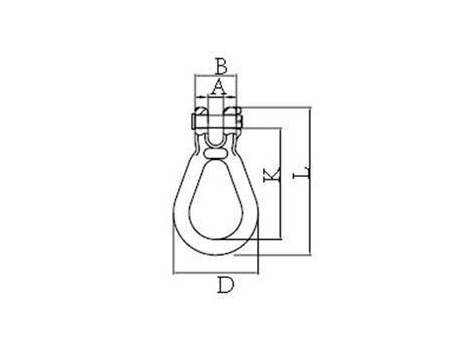

| Item code | Weight (KG) | Load capacity/KG | Breaking load /KG | B±1.5 | A±0.5 | D±2 | K±2 | L±2 |
| SLR057-8mm | 0.555 | 3800 | 7600 | 35 | 12 | 86 | 108 | 142 |
| SLR057-10mm | 0.63 | 6000 | 12000 | 36 | 13.5 | 95 | 119 | 156 |
| SLR057-13mm | 0.93 | 9000 | 18000 | 48.5 | 18 | 100 | 132 | 175 |
