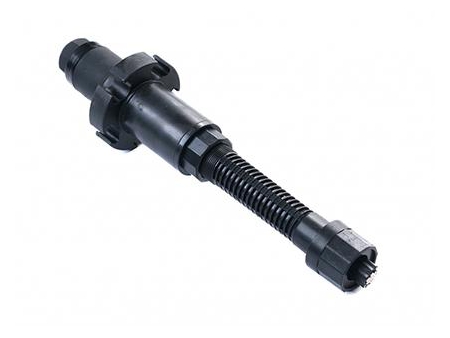

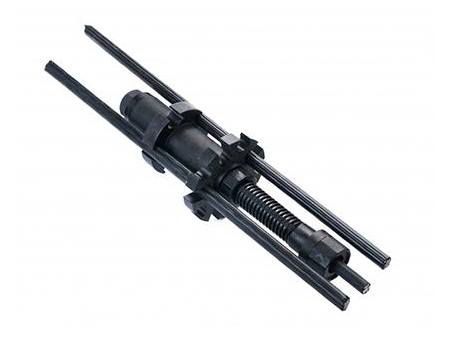

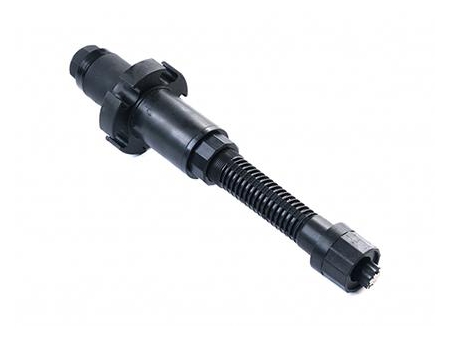

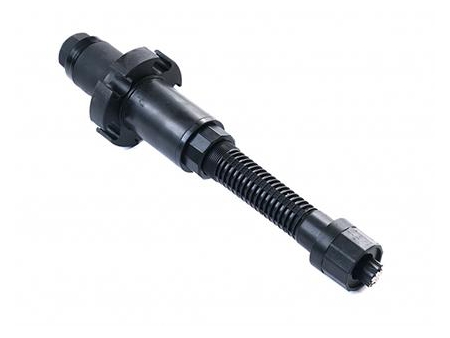

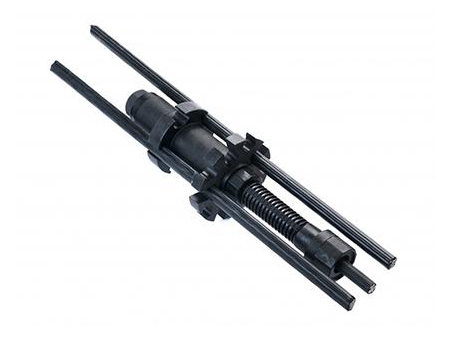

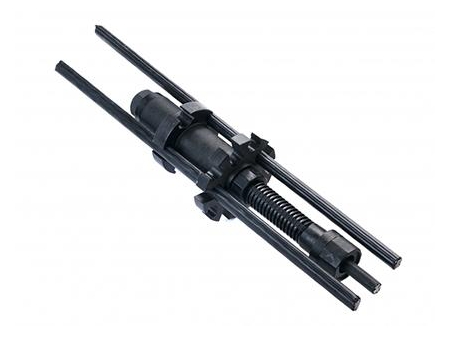

Combination of 5 steel strands can be made at most in grouting type anchor where the largest internal diameter of the anchor body is 135mm. Suitable enlargement need to be made at the anchor holes if more steel strands required. We, NENGGONG has designed a combination of anchor and attachment plates so that maximum 18 steel cables can be added to cater our customer needs. Besides, we are able to manufacture the anchor into hot melt removable type, permanent type or intelligent type in accordance to our customer needs.

• Slope
• Counteracting uplift forces structure
• Fixation of bridge bearing platform
• Tunnel and fixation of other permanent buildings

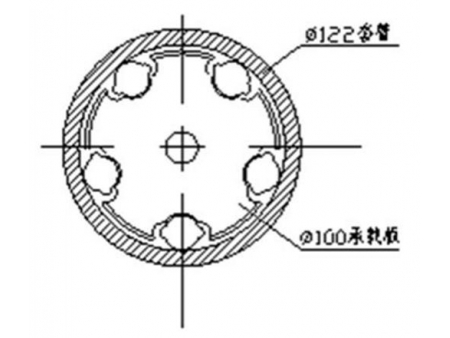

Parameters
• Construction process: Grouting at the casing
• Diameter of base bearing plate: 100mm
• Diameter of attaching bearing plate: 135mm
• Thickness of bearing plate: 20mm
• Maximum number of cable combinations: 15
• Suitable steel strand type: Φ15.2/Φ12.7
• Be aware of the case model if casing is used: internal diameter more than 141 mm.
• Suitable grouting pipe: ½ inch- ¾ inch
• Function: can be manufactured into hot melt removable type, intelligent real-time internal force monitoring type, permanent type or other combinations

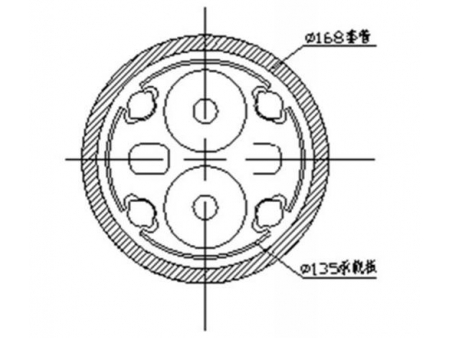

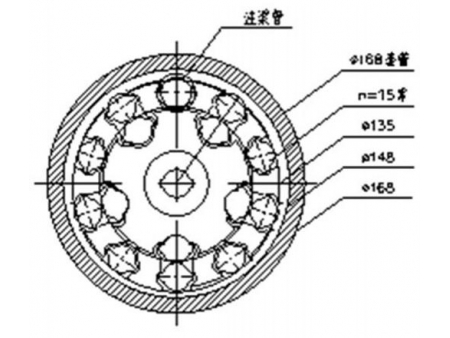

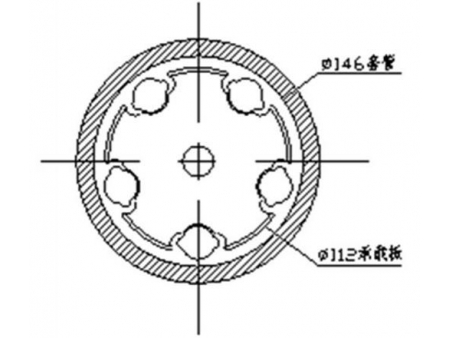

Parameters
• Construction process: Grouting at the casing
• Diameter of base bearing plate: 112mm
• Diameter of attaching bearing plate: 135mm
• Thickness of bearing plate: 20mm
• Maximum number of cable combinations: 15
• Suitable steel strand type: Φ15.2/Φ12.7
• Be aware of the case model if casing is used: internal diameter more than 168mm.
• Suitable grouting pipe: ½ inch- ¾ inch
• Function: can be manufactured into hot melt removable type, intelligent real-time internal force monitoring type, permanent type or other combinations

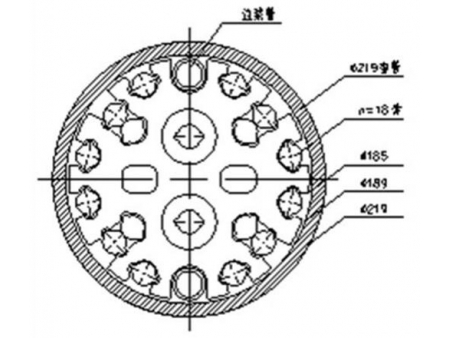

Parameters
• Construction process: Grouting at the casing
• Diameter of base bearing plate: 135mm
• Diameter of attaching bearing plate: 185mm
• Thickness of bearing plate: 20mm
• Maximum number of cable combinations: 18
• Suitable steel strand type: Φ15.2/Φ12.7
• Be aware of the case model if casing is used: internal diameter more than 191mm.
• Suitable grouting pipe: ½ inch- ¾ inch
• Function: can be manufactured into hot melt removable type, intelligent real-time internal force monitoring type, permanent type or other combinations
