Board Book Mounting and Gluing Machine, WT-007DBJ Manufacturer

Board Book Mounting and Gluing Machine, WT-007DBJ

: http://card-equipment.com/3-board-book-mounting-and-gluing-machine-wt-007dbj.html

Board book mounting and gluing machine is an automatic book binding machine for children’s board books, it can accomplish book mounting and gluing in one step. This board book machine allows glue to be applied on full area or in section, giving an optimal binding result.

Samples

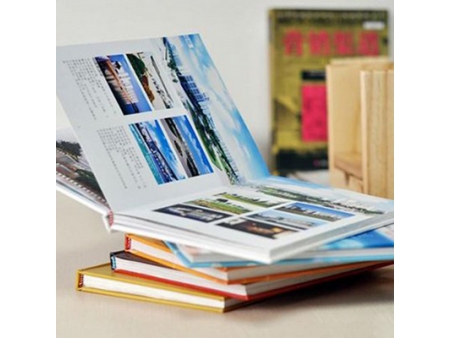

Children’s books
Lift-the-flap book

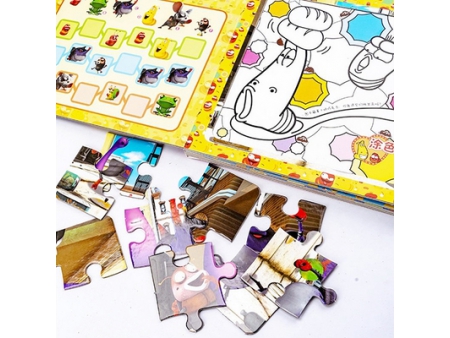

Jigsaw puzzle board book

Specifications

Power supply	AC 380V/50 HZ	Min. infeed sheet size	100*100mm
Total power	10KW	Max. infeed sheet size	300*300mm
Air source	6 kg/cm²	Single sheet thickness	300g-4mm
Air consumption	Approx.150L/min	Glue type	Water-based adhesives
Dimension	L15500W1650H1700MM	Gluing	Full area/sectional area
Weight	Approx.3500KG	Mounting	General/special shaped
Operators needed	5	Productivity	3600sheets/H
Configurable	1/6/12 workstations	Productivity	3600sheets/H

Productivity: 3600sheets/H
Single sheet thickness: 300g-4mm
Max. Infeed sheet size: 300*300mm
Min. infeed sheet size: 100*100mm
Mounting: General/special shaped
Glue type: Water-based adhesives
Gluing: Full area/sectional area
Power supply: AC 380V/50 HZ
Total power: 10KW
Air source: 6 kg/cm²
Air consumption: Approx.150L/min
Dimension: L15500*W1650*H1700MM
Weight: Approx.3500KG
Operators needed: 5
Configurable: 1/6/12 workstations

Features

1. Sheet feeding unit
  Board pages are stacked and placed in the magazine, stable sheet feeding is guaranteed through corresponding size adjustment;
1. Gluing unit
  Standard glue application structure, the position is adjustable according to individual page size;
1. Belt conveying unit
  Servo motor driven belt transfers individual sheets, providing precise positioning and flexible speed control;
1. Book page pressing unit
  Every single page is tightly pressed after gluing, ensure a great book binding result;
