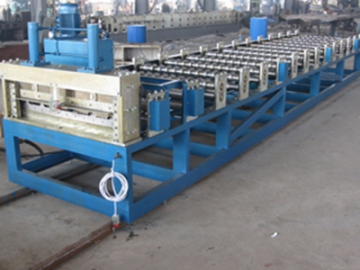

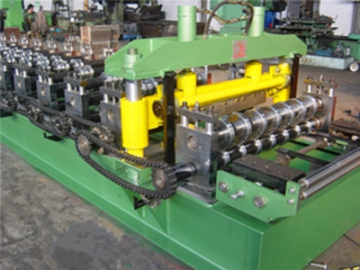

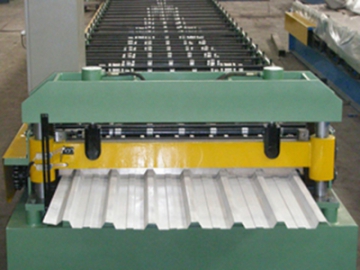

840 Corrugated Sheet Roll Forming Machine
Our 840 Corrugated Sheet Roll Forming Machine can not only be used to form corrugated ceramic but also 840 flat sheets. As a leading 840 Corrugated Sheet Roll Forming Machine manufacturer in China, Bohai produces and supplies 840 Corrugated Sheet Roll Forming Machine that are of high levels of automation and easy operation. Our 840 Corrugated Sheet Roll Forming Machine is widely used by our customers from all over the globe, such as Ukraine, Mexico, Romania, UAE, Afghanistan, Iraq, Angola, Guinea and other countries.
Technical Parameter| Coil Dimension (mm) | 1250×(0.4-0.6)×L |
| Yield Strength of Coil | ≤ 250MPa |
| Working Speed | 2.0-4.0m/min |
| Roller Station | 10 steps |
| Roller Material | # 45 forged steel plated with hard chromium |
| Shaft Material | # 45 forged steel after tempering |
| Shaft Diameter | ¢76mm |
| Main Power | 5.5kw |
| Hydraulic Motor Power | 11kw |
| Hydraulic Station Pressure | 10~12Mpa |
| Control System | PLC |
| Dimension (mm) | 6500×1700×1400 |
Characteristics
1.This 840 Corrugated Sheet Roll Forming Machine is designed with compact structure and nice looking. The whole machine is welded with H steel, realizing steady performance.
2. With the automatic measuring and cutting devices, the product gets highly precise and trim cutting edge.
