Ironworker Machine
This ironworker machine is used for cutting, shearing, notching and bending different types of steel plates. It is equipped with a backgauge control system for easy operation.
Technical Parameters
| Model | Q35Y-16 | Q35Y-20 | Q35Y-25 | Q35Y-30 |
| Punching pressure | 55 | 75 | 110 | 140 |
| Max. cutting thickness (mm) | 16 | 20 | 25 | 30 |
| Shear strength(N/mm2) | ≥450 | ≥450 | ≥450 | ≥450 |
| Shear angle (degree) | 7° | 8° | 8° | 8° |
| Shearing size per stroke (mm） | 16x250mm 8x400mm | 20x330mm 10x480mm | 25x330mm 16x600mm | 30x355mm 20x600mm |
| Ram stroke (mm) | 80 | 80 | 80 | 80 |
| Strokes (mm) | 8 | 8 | 6 | 6 |
| Throat depth (mm) | 300 | 355 | 400 | 600 |
| Punching thickness (mm) | 16 | 20 | 25 | 26 |
| Max. Punching diameter(mm) | 25 | 30 | 35 | 38 |
| Main motor power | 4 | 5.5 | 7.5 | 11 |
| Overall dimensions(L*W*H)(mm) | 1640*730*1770 | 1640*800*1900 | 2355*960*2090 | 2680*1040*230 |
| Machine weight (kg) | 1600 | 2000 | 4800 | 6800 |

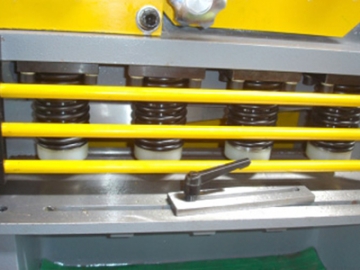

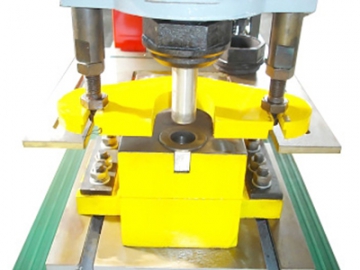

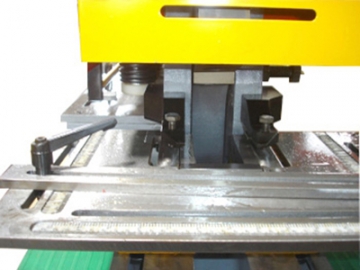

Machine View
