Wrist Strap ESD Static Tester, Heel Strap Static Tester

Wrist Strap ESD Static Tester, Heel Strap Static Tester
Wrist Strap ESD Static Tester, Heel Strap Static Tester
Wrist Strap ESD Static Tester, Heel Strap Static Tester
Wrist Strap ESD Static Tester, Heel Strap Static Tester
Wrist Strap ESD Static Tester, Heel Strap Static Tester
Wrist Strap ESD Static Tester, Heel Strap Static Tester
Request a Quote
STC-001ESD resistance tester
Measuring range 10² ~10³Ω per square meter
Power supply 9 v alkaline battery
Voltage Normal: 9V
Operating temperature 5°C-49°C
Operating humidity 0%-90% (non-condensing)
Resolution ratio An order of magnitude (10)
Switching point ±1/2 order of magnitude
Accuracy ±10%
Size 130mm*70mm*25mm
Weight 160g

This portable resistance tester is primarily used to measure the ground resistance and surface resistance. Its specification is 10 ohms/M -10 ohms/M and the accuracy is ±10%.

Place the resistance tester on the surface of the tested object and press the red button. The related LED light will turn on, indicating if the object is conductive, antistatic or isolated.

Power supply: 9V alkaline battery

Application: antistatic workshop and testing room

STC-003 Static electricity tester
Tester size 170 * 85 * 35mm
Weight 260g
Material Polystyrene
Wrist strap connector 10mm and 4 mm plug
Connecting to the testing board for footplate 4mm plug
Stainless touch pad Touching area: 26 * 28mm
Brightness 3 leds for both, wrist strap & footwear.
Testing result Low (red) <750 kohms
Middle (green) 750 kohms~10/35Mohms
High (red) 10/35Mohms

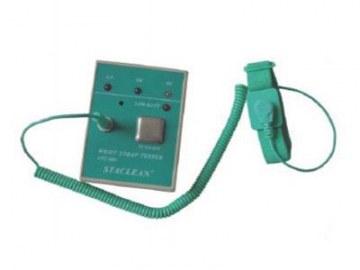

STC-005 wrist strap tester
Voltage DC voltage
Temperature outdoor/indoor 10°C to 40°C
-15°C to +60°C
Humidity 0% to 90% (without condensing)
Accuracy + 5%
Weight 145g
Voltage >6.5 volts <9 volts
the low voltage is set to be 6.5V
Function Low voltage alarm

Description:
1. This static tester is especially useful for wrist and heal straps in testing the quality of each, respectively.

2. The wrist strap tester has a stable performance, and is applicable to various working conditions with a reasonable circuit layout in order to ensure a stable circuit. It is subject to minimal external interference, and is easy to adjust.

3. The tester has a low voltage indicator, which will automatically sound an alarm when voltage levels are too low.

4. This tester is equipped with an external DC 9V battery. The allowable testing range is 800K≤R≤10MK±5%.

5. This wrist strap tester is widely used for connections to all wired wrist straps that meet ESD standards. Its interface is a banana plug.

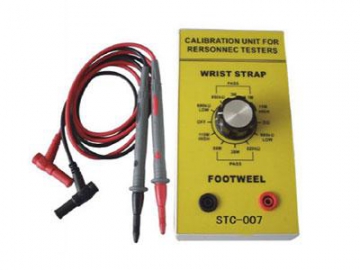

STC-007 (Calibration Unit)
Testing range 103 ~102 ohms per square meter
Power supply 9 Voltpp3 alkaline battery
Voltage Normal 9V
Operating temperature 5°C-49°C
Operating humidity 0%-90% (without condensing)
Resolution ratio An order of magnitude
Switching point ±1/2 decade
Accuracy ±10%
Size 130mm*70mm*25mm
Weight 160g

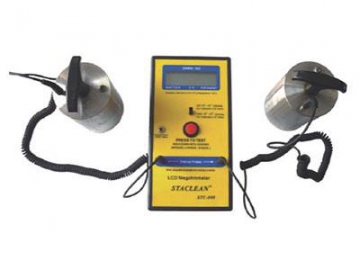

STC-008 Hammer-type surface resistance tester
Voltage 10V and 100V
Testing range 103-1012 ohms
Accuracy ±5%
Power supply 9 v dry battery (rare), 12 v stable adapter
Size 98*186*28 (mm)
Weight 300g

The STC-008 hammer-type surface [GF2] resistance tester conducts testing on the surface of objects that are under 10 or 100V. The testing resistivity range is 103-1012 ohms. The RTG/RTT and the resistivity are tested to meet the requirements of ANSI/ESD S20.20 testers in order to better determine the surface resistance and volume resistance.

Using two standard 5-pound electrodes and following ESD S4.1, ANSI ESD7.1 and ANSI EOS/ESD S113.1112 standards, we conducted dual (two) tests with the voltage being 10V and 100V, and have determined it is an ideal portable instrument for site technicians.

Range under the voltage of 10V: 103-1011ohms.

Range under the voltage of 100V: 106-1012ohms

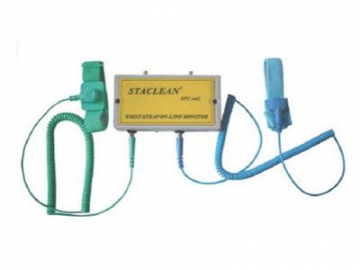

STC-602A Wrist strap online monitoring instrument
Model STC-602
Input voltage 6V DC
Material ABS
Size 110*60*29 (mm)
Weight llOgm (not including power adapter)

Features:
1. This monitor can monitor the real-time working status of the antistatic wrist strap worn by 2 operators.

2. The sound and visual alarms are designed to indicate a state of low or high resistance.

3. The monitoring resistance range of the operator is as follows:
LOW: R<800K,the yellow light flashes and the sound alarms;
PASS: 800
HIGH: R>9M, the red light flashes and the sound alarms.

4. The resistance range can be set according to customer requirements.

5. Additional power supply: 220VAC/50HZ input and 9-12VDC/500MA output.
