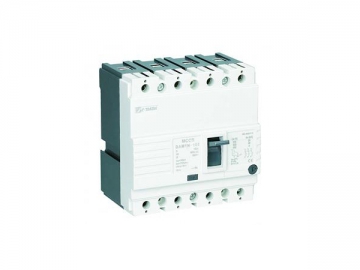

DAM1-160 MCCB Molded Case Circuit Breaker
Introduction
The DAM1-160 molded case circuit breaker was developed by Dada for to distribute electrical energy, start asynchronous motors at infrequent intervals, protect power lines and motors, and automatically cut off the circuit in the case of serious overload, short circuit, and under voltage fault conditions. Molded case circuit breakers operate in an equivalent manner to fuse-switch and thermal relay combinations.
Application
DAM1-160 molded case circuit breakers are low-voltage circuit breakers. They meet the installation needs of small users all the way to large industrial substations and power distribution systems. They are commonly applied in steel mills, oil platforms, hospitals, railway systems, airports, computing centers, office buildings, convention centers, theaters, skyscrapers, and other large scale structures.
| Breaking capacity code | B | N | S |
| Rated current of frame size | 160A | ||
| Rated current | 10,12.5,16,20,25,32,40,50,63,80,100,125,160A | ||
| Rated insulation voltage | 750V | ||
| Rated operating voltage | 400/415V | ||
| Number of poles | 3P/4P | ||
| Rating limit short-circuit breaking capacity | 25KA | 35KA | 50KA |
| Rated operation short circuit breaking capacity | 12.5KA | 26.25KA | 37.5KA |
| Rated short-time making capacity | 41/0.3 | 73.5/0.25 | 110/0.25 |
| Rated impulse withstand voltage | 8000V | ||
| Dielectric properties | 3000 | ||
| Flashover distance | ≤30mm | ||
Physical parameters of DAM1-160 molded case circuit breaker
Total endurance: 8,000
Electrical endurance: 1,000
Mechanical endurance: 7,000
Overcurrent release: Thermal magnetic fixation, thermal tunable (0.7-1In)
Use main circuit A/O, use auxiliary circuit and control circuit AC-15
Weight (plug-in type): 1.2/1.6
Weight (stationary type): 1.4/1.8
| Specification | 3P | 4P |
| Width W*Length L*Height H (mm) | 90*120*70 | 120*120*70 |
Optional accessories of DAM1-160 MCCB molded case circuit breaker
Under voltage trip, shunt trip, auxiliary contact, alarm contact, auxiliary alarm contact, manual manipulation, electric operation, hanging buckle, flashboard, clapboard.
