Compared to a DIN rail single phase energy meter (4P), this DIN rail multifunctional energy meter features a larger range of functions. A 7 digit LCD display allows for the reading of active energy, voltage, current, active power, power factor and grid frequency.
This single phase electricity meter has a 4P width (12.5mm module), in line with JB/T7121-1993 standards.
Technical parameters| Voltage | 220V/130V |
| Installation type | DIN rail |
| Ambient humidity | 0.85 |
| Communication interface | RS485 |
| Outline dimension | 88mm×75mm×73.5mm |
| Weight | 280g |
| Recommended installation height | Over 1.8m |
| Class | 1.0 class |
| Storage temperature | -15～ 55℃ |
| Standard working temperature range | -20～ 75℃ |
| Current circuit power consumption | 1.0W 5VA |
| Current specifications | 1.5(6)A-connecting to CT、10(40)A、15(60)A、20(80)A、30(100)A |
| Min. Service life | 10 years |

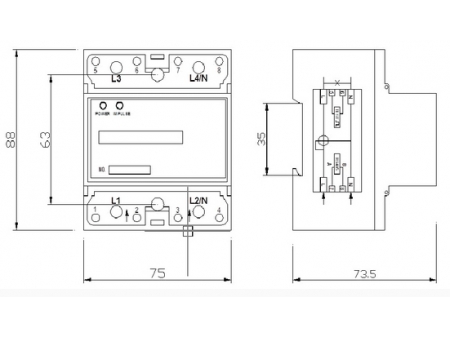

Outer dimension
