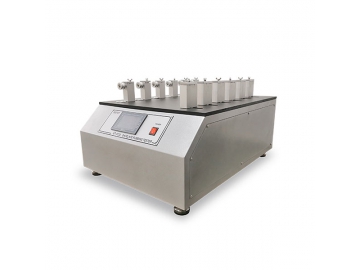

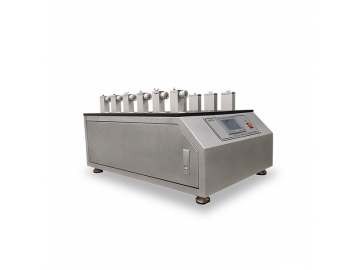

Shoelace Rubbing Tester
Application
This machine is used to test the abrasion resistance for shoelace of cotton, hemp, chemical fiber or other materials.
Key Specification
| Model | ||
| Test position | 4 groups | 6 groups |

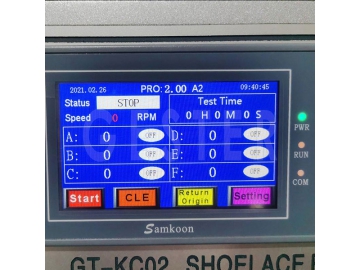

| Control | Touch-screen control, 0~999,999 | |
| Min. Separation between movable and fixed fixtures | 280 ±50 mm | |
| Movable fixture stroke | 35± 2 mm | |
| Test speed | 60 ± 6 cycles/min | |

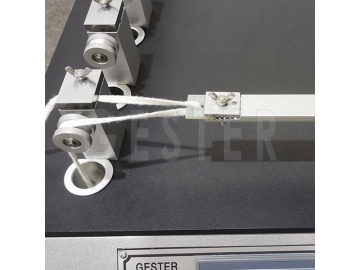

| Sample loading gauge | Angle 52.5degree; Length120 mm | |
| Stainless metal strip | W: 25mm, L: 250mm | |
| Weight | 250 ± 3g | |
| Power supply | Customizable | |
| Dimensions ( L x W x H ) | 66 x 58 x 42cm | |
| Weight | 50 kg | |
| Standards | DIN 4843 SATRA TM 154 ISO 22774 QB/T 2226 GB/T 3903.36 | |
Accessories
| Standards accessories | 4pcs | 250g Weights |
| 4pcs | Stainless metal strip | |
| 4pcs | Clip | |
| 1pc | Sample loading gauge | |
| 1pc | Power line | |
| Optional accessories | Optional | Standard eyelet |
