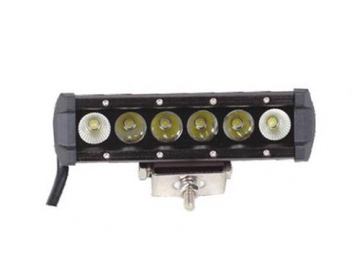

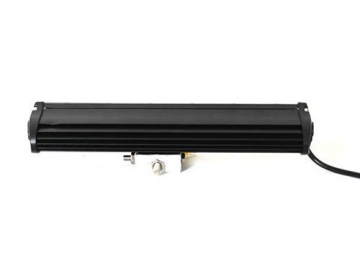

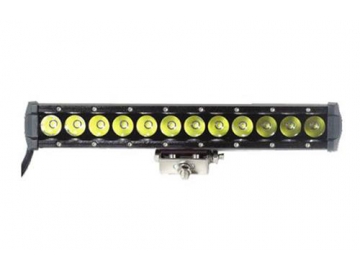

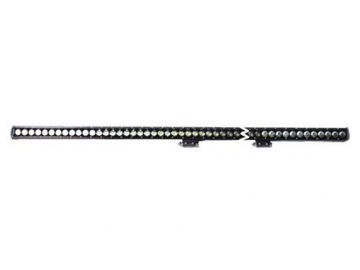

5W LEDs Straight Single Row LED Light Bar
Description

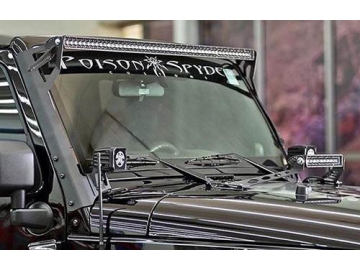

5W LEDs straight single row LED light bar is mainly equipped with 5W high-intensity LEDs, whose quantity is optional among 6, 12, 24, 36 and 48. It's mainly used for vehicle lighting.
Parameters
| Light Source | American CREE or EPISTAR LED |
| Input Voltage | 9~32VDC |
| Working Temperature | -40~80℃ |
| LED Lifetime | >50000h |
| Light Type | Spotlight/Floodlight |
| Color Temperature | 6000K |
| Color | White |
| Waterproof Rating | IP67 |
| Warranty | 12 months |
The followings are the optional types of this series of lights
| Item# | LEDs | Power | Lumen | Voltage | Size(MM) | Inquiry form |
| LWL-XRL1058 30W | 6pcs×5W | 30w | 2100 | 9-32V | 108×75×51 | |
| LWL-XRL1058 60W | 12pcs×5W | 60w | 4200 | 9-32V | 333×75×51 | |
| LWL-XRL1058 120W | 24pcs×5W | 120w | 8400 | 9-32V | 633×75×51 | |
| LWL-XRL1058 180W | 36pcs×5W | 180w | 12600 | 9-32V | 933×75×51 | |
| LWL-XRL1058 240W | 48pcs×5W | 240w | 16800 | 9-32V | 1233×75×51 |
