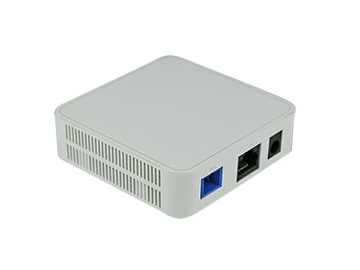

KOC-G600-100U Optical Network Unit

Our optical network units are bidirectional and specially developed for GPON broadband networks while accommodating all FTTH/FTTO (Fiber to the home) network topologies. Supporting GPON links of up to 20km, the devices integrate with the OLT devices from mainstream telecom manufacturers such as Huawei, ZTE, Fiberhome and Alcatel-Lucent, giving them a high bandwidth and efficiency, allowing them to cover a wide array of users. They provide the ideal technology for operators to move their business to broadband and are in line with ITU-T and IEEE standards, which ensures we offer the best network services.

Features

Compatible with ITU-T G.984.1/2/3/4, GPON upstream transmission
Downstream rate 2.448Gbit/s, upstream rate 1.244Gbit/s
Up to 32 TCONT and 128 GEMPORT
Two-way FEC, RS(255 ,239) FEC coding and decoding
G.984 PLOAM, embedded OMCI management
Dying-Gas detection and report
Continuous-mode ONU detection
GPON energy saving based on G987.3
Tag/Untag Ethernet frame of 802.3 and 802.1Q support, QinQ support
Tag management, CTC3.0 management
Flexible flow classification, maximum 520 flow classification rules
Error monitoring and loop monitoring
Multiple multicast forwarding, multicast replication
Auto-negotiation and hand-setting of Ethernet support rate and duplex mode
The UNI ports support STP/RSTP
QoS guarantee by SLA(service level agreement) constraint, policing, queue management and scheduling, congestion avoidance, discard management
Inlet flow control, backpressure of pack Pause
HQoS functions

Specifications

Port	PON	1×FSAN G.984.2 GPON port Downstream: 2.488Gbps; Upstream: 1.244Gbps SC/PC single mode fiber 28dB link（FSAN Class B ） A maximum reach of 20km Split ratio: 1:128
	Ethernet	1×10/100/1000M adaptive Ethernet port Full-duplex/Half-duplex RJ45 (electrical), Direct cross-connections Maximum reach 100m
	Power interface	12V DC
Performance	PON interface (applicable to the PON modules provided by our company)	Wavelength: upstream 1310nm，downstream 1490nm TX power range: 0.5～5dBm RX sensitivity: -28dBm Saturated RX power: -8dBm
Performance	Data transmission	PON handling capacity: downstream 2.488Gbit/s; upstream 1.244Gbit/s Ethernet port: 1000Mbps Packet loss rate: <1*10E-12 Delay: <1.5ms
Management	Mode	OMCI management based on G.984.4 WEB management
Management	Security	Status monitoring, configuration management, alarm management, log management
Physical property	Rack	White plastic rack
	Power Supply & Consumption	External power adapter: 12V/0.5A DC Consumption: <3W
	Size, Weight	Size: 78mm(L) x 78mm(W) x25mm (H) Net weight: 0.1kg
	Environment	Operating Tem.: 0～50℃ Storage Tem.: -40～85℃ Operating humidity: 10%～90%(non-condensing) Storage humidity: 10%～90%(non-condensing)

KOC-G600-100W Optical Network Unit

These optical network units are designed to accommodate all FTTH/FTTO (Fiber to the home) technologies. They adhere to IEEE802.11 n/b/g GPON standards, and have a high bandwidth, high efficiency and wide coverage range. They offer complete QoS support including traffic flow classification, priority marking, queue and dispatch, traffic shaping and traffic control. Their signal has a strong penetration and covers a large area, thus enhancing the data transmission security.

Features

Compatible with ITU-T G.984, GPON upstream transmission
ONU automatic discovery/link detection/remote upgrade
Wi-Fi devices are in line with IEEE802.11 n/b/g
Configuring transparent transmission of VLAN packets, tag configuration
Multicast stream
DHCP/Static/PPPOE configuration
Port binding
OAM TR069 management
Data encryption and decryption
DBA(dynamic bandwidth allocation)
MAC filtering and URL access control
Centralized management based on SNMP protocol and EMS
Complete alarming function

Specifications

Port	PON	1×FSAN G.984.2 GPON port Downstream: 2.488Gbps; Upstream: 1.244Gbps SC/PC Single mode fiber 28dB link（FSAN Class B ） A maximum reach of 20km Split ratio: 1:128
	Ethernet	1×10/100/1000M adaptive Ethernet interface Full-duplex/Half-duplex RJ45(electrical), RJ45 (electrical), Direct cross-connections Maximum reach 100m
	Power supply	12V DC
Performance	PON interface (applicable to the PON modules provided by our company)	Wavelength: upstream 1310nm, downstream 1490nm TX power range: 0.5～5dBm RX sensitivity: -28dBm Saturated RX power: -8dBm
Performance	Data transmission	PON handling capacity: upstream 2.488Gbit/s; downstream 1.244Gbit/s Ethernet port: 1000Mbps Packet loss rate: <1*10E-12 Delay: <1.5ms
Management	Mode	OMCI management based on G.984.4 TR-O69 remote management and WEB management
Management	Security	Status monitoring, configuration management, alarm management, log management
Physical property	Rack	White plastic rack
	Power Supply & Consumption	External power adapter: 12VDC/0.5A
	Power Supply & Consumption	Consumption: < 4W
	Size, Weight	Size: 125×80×28mm Net weight: 0.2kg
	Environment	Operating Tem.: 0～50℃ Storage Tem.: -40～85℃ Operating humidity: 10%～90%(non-condensing) Storage humidity: 10%～90%(non-condensing)

Performance Index	Operating mode	Route mode and bridge mode
	Standard	IEEE802.11b/g/n
	Frequency domain	2.412 ~ 2.472 GHz
	Antenna gain	5dBi
	Support rate	802.11b: 1, 2, 5.5, 11Mbps 802.11g: 6, 9, 12, 24, 36, 48, 54Mbps 802.11n: Maximum 300Mbps
	Wireless channel	2.4GHz Channel: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13
	Modulation mode	11b: DSSS: DBPSK(1Mbps), DQPSK(2Mbps), CCK(5.5/11Mbps) 11g: OFDM: BPSK(6/9Mbps), QPSK(12/18Mbps), 16QAM(24/36Mbps), Q64QAM(48/54Mbps) 11n: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM
	RX sensitivity	11Mbps: ≤-90dBm 54 Mbps: ≤-76dBm HT20 MCS7: ≤-73dBm HT40 MCS7: ≤-70dBm
	Transmitted power	802.11n: 17dBm
	Encryption	AES, TKIP, WPA, WPA2, WPA-PSK/WPA2-PSK
