Automatic Gantry Calibrating Machine Manufacturer

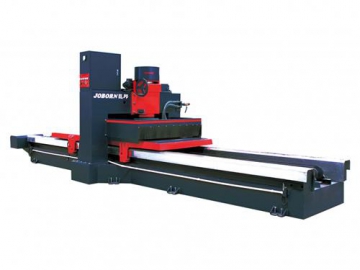

Automatic Gantry Calibrating Machine

: http://stone-saw.com/4-1-automatic-gantry-calibrating-machine.html

Application

Adopting a gantry type conjoined structure, the automatic gantry calibrating machine is suitable for the processing of fixed thickness (1.1m or 1.25 m) granite, sandstone, artificial stone, limestone, cave stone, marble and other stone materials.

Specifications

Appellation	Unit	SXA-100L-1080	SXA-100L-1350
Calibrating head diameter	mm	1080	1350
Calibrating head lifting stroke	mm	100	100
Worktable size	mm	3000X1100	3000X1250
Water consumption	m3/h	8	8
Power of main motor	kW	18.5	22
Total power	kW	20.3	23.8
Dimension (LxWxH)	mm	6800x2150x2100	7000X2350x2150
Weight	Kg	3500	4200

Features

Adopting a gantry type structure, the gantry calibrating machine has good rigidity, and the lifting space of the cutting head is flexible.
When processing a fixed thickness, the cutting head is heavy and stable, making the processed stone flat and normative. Therefore, the machine is ideal calibrating equipment.
The cutting head can be clamped firmly to avoid shakiness.
Controlled by the frequency converter, the worktable moving speed can be adjusted according to the material and thickness of stones, and can also feed and relieve cutter automatically.
