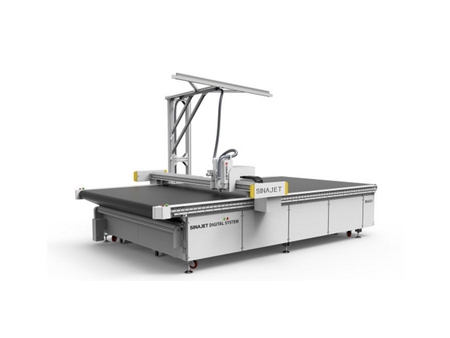

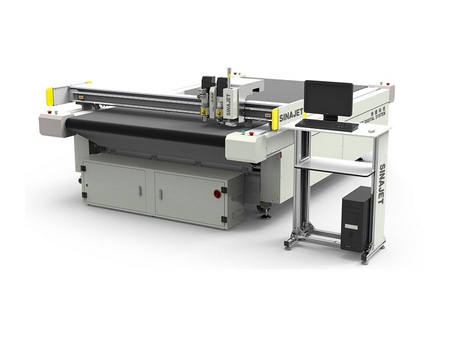

DG Series Digital Flatbed Cutter (Applied for Sign, Advertising and Packaging Industry)

: http://digital-cuttings.com/4-1-digital-flatbed-cutter.html

Acrylic
Aluminum Composite
POP Display Recycle Board
PVC Sheet Forex
Gasket Materials
Textiles Banners Fabric

Modular combination of cutting knives:
high speed rotary knife, high speed oscillating knife, CNC router, creasing wheel tool, V-cutting tool, kiss cutting tool, drag knife, etc., suitable for cutting various types of flexible materials such as PP paper, self-adhesive sticker, car decal, and rigid materials such as PVC board, foam board, expanded PVC, acrylic sheet, corrugated cardboard, honeycomb board;
Anti-collision device infrared light curtain:
protecting operator from being injured;
Advanced software:
independently developed by Sinajet, providing users with intelligent operation experience while fulfilling their various cutting demands;
Exclusive material hold-down technology:
low noise level and reduced energy consumption;

Specifications

Working table: fixed table and conveyor table are optional
Repeatability: ≤0.1mm
Max. cutting thickness: 50mm
Max. cutting speed: 1500mm/s
Cutting tools: rotary knife, creasing wheel tool, kiss cutting tool, V-cutting tool, oscillating knife, drag knife, etc. are optional
Material hold-down: vacuum clamping
File format: DXF/ HPGL/ CUT/ GBR/ PLT/ ISO/ PDF
Interface: network interface
Voltage: 220V/380V/50-60HZ
Drive system: imported intelligent digital servo drive
Pump power: 2.2-9.0KW
Working environment: temperature 0-40℃; humidity 20%-80%RH (non-condensing)

Options

There are six models available to meet different needs. Those models vary from the cutting area (L*W). Customized machine model can be offered upon request.

DG1513: 1500*1300mm
DG2513: 2500*1300mm
DG2516: 2500*1600mm
DG2521: 2500*2100mm
DG3321: 3300*2100mm
DG4032: 4000*3200mm
