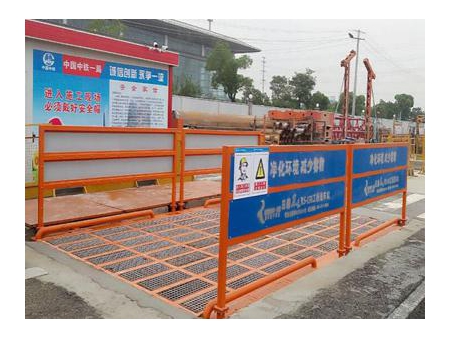

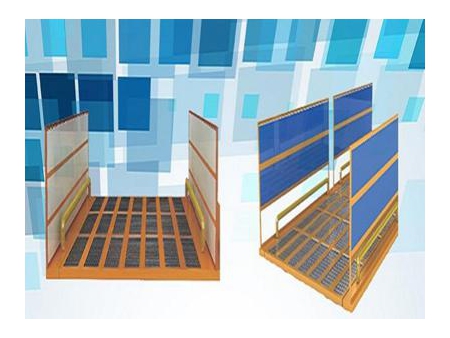

The heavy duty truck wash system is controlled using computer software to automatically clean and remove dirt. This truck wash system is suitable for heavy duty trucks with a loading capacity under 80T. The water recycling system for this truck was allows for a small amount of complementary water to work continuously for long periods of time, which also saves large water amounts.

Parameters
Dimension L*W*H: 2300mm×3600mm×1300mm (custom size available)
Applicable Vehicles Heavy duty trucks capacity≤ 80T
Washing Time 40-60 sec/car
Water Supply DN 100mm water flow rate≥2000L/min
Voltage AC three-phase four-wire system Voltage AC380V 50Hz
Total Power 4KW
Water Consumption 80L/car
Advantages
  • This equipment specializes in washing heavy duty trucks to assist in preventing urban road pollution caused by these trucks.
  • Automatically removes dirt.
  • Rust resistant frame is durable.
  • The water recycle system saves significant amounts of water.
  • Adjust to different working conditions and environments.
Configurations
Photoelectric sensor Undercarriage wash system (optional) high pressure water jet system
Guide rail Drainage ditch Electric cabinet
Operation cabinet Water tank Cable and water pipe ditch
