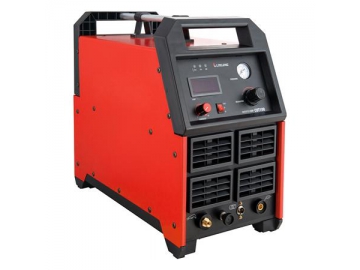

Single Phase MOSFET Plasma Cutter
Main Parameters
Cutting Thickness: 10-20mm
Applicable Power Supply: Single Phase
Rated Input Voltage: 110V/220V
Rated Input Power: 3.6kW-8.2kW
Rated Input Current: 31A-5.4A
Open Circuit Voltage: 230V/240V
Protection Class: IP23
Insulation Class: H
Cooling System: Forced air cooling
Our CUT40/60D series MOSFET plasma cutter is designed to work with a single phase power supply. It is widely used for the cutting of metal plates or tubing in a variety of industries, including steel construction, manufacturing industry and automotive repair and restoration.
Typical materials cut with the plasma cutter include steel, stainless steel, aluminum, lead, titanium, nickel-based composite metal, cast iron, and more.
Features- The MOSFET inverter works with a frequency up to 100kHz, thus ensuring the plasma arc has access to a concentrated energy. As a result, a, high cutting speed, clean and smooth cut and very little distortion are all achieved.
- The plasma cutter can be paired with CNC equipment, then controlled through the user interface on the CNC equipment.
- The plasma cutter's air pressure can be adjusted as required, and will be displayed on the front panel.
- The plasma torch's forced air cooling system ensures a high efficiency cooling, thus significantly enhancing the service life of all torch components.
- Built-in overheat, overcurrent, overvoltage, and under voltage protection circuit ensures safe operation.
- Both regular 2T and semi-automatic 4T modes are supported, accommodating different operating habits. In 2T mode, the operator will need to hold the switch down during the entire cutting process. Once the switch is released, cutting stops. In 4T mode, the operator simply needs to toggle the switch on, let go and then cut and toggle it off when finished.
| Model | CUT40D-1 | CUT40D-2 | CUT60D-1 | CUT60D-2 |
| Cutting Thickness | 10mm | 12mm | 10mm | 20mm |
| Rated Input Voltage | 1P 110V | 1P 220V | 1P 110V | 1P 220V |
| Frequency | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz |
| Rated Input Power | 3.6KW | 5.0KW | 3.6KW | 8.2KW |
| Rated Input Current | 44.4A | 31A | 44.4A | 51.4A |
| Rated Output Current Range | 15-30A | 15-40A | 20-30A | 20-60A |
| Duty Cycle (40°C 10min) | 60%30A, 100%25A | 60%40A, 100%32A | 60%30A, 100%25A | 60%40A, 100%32A |
| Open Circuit Voltage | 230V | 230V | 240V | 240V |
| Efficiency | ≥80% | ≥80% | ≥80% | ≥80% |
| Power Factor | 0.73 | 0.73 | 0.73 | 0.73 |
| N.W | 13.0KG | 13.0KG | 17.5KG | 17.5KG |
| G.W. | 14.5KG | 14.5KG | 19.5KG | 19.5KG |
| Packing Dimension | 500×245×450mm | 500×245×450mm | 570×255×495mm | 570×255×495mm |
Customization
The appearance, cutting current, product manuals and packaging can all be customized according to customer requirements.
- Plasma Torch
- Earth Clamp
- Mask
- Hammer Brush
- PU Tubing
