Fluid End Module, Mud Pump Components Manufacturer

Fluid End Module, Mud Pump Components

: http://oildrillingcn.com/2019/4-1-valve-module.html

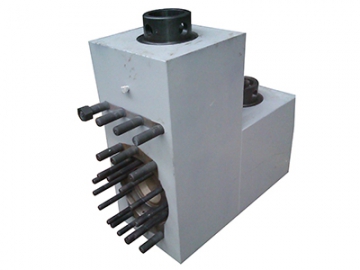

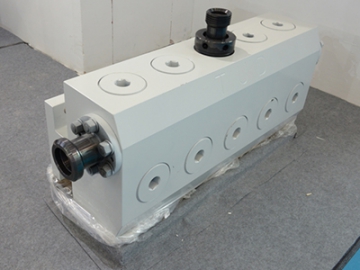

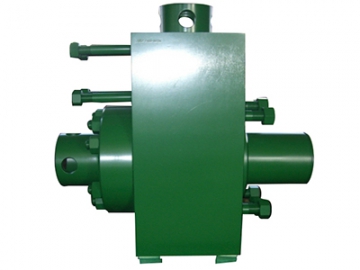

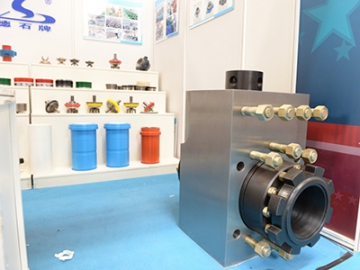

As an important component on the fluid end of mud pump, our Rundong value module is made using premium 8620 or 4135 alloy steel with forging, normalizing, rough machining and then quenching and tempering processes. In this way, the interior of the fluid end module will have hardness in the range of HB285 to HB330. Then in finish machining process, two positioning cone holes (1:6 and 1:12) will be rolled, ensuring contact area no less than 75 percent. At last, the finished product will go through pressure testing, gauge inspection and flaw inspection and a corresponding flaw and test report will be generated for each individual fluid end module. Our fluid end module is compatible with different types of mud pumps.

Mud Pump Model List
Bomco/Emsco	F-1300	FB-1300	F-1600	FB-1600	F1600HL	F2200HL	F-1000	F-800	F-500
National	7P50	8P80	9P100	10P130	12P160	14P220
Gardner Denver	PZ7	PZ8/9	PZ10/11	FK-FXK	FY-FXX	FG-FXG	FF-FXP	KG-KXG	FQ-FXQ
Oilwell	A-850-PT	A-1100-PT	A-1400-PT	A-1700-PT
Russian	UNBT-950	UNB-600	8T-650	UNBT1180L	3PN1600
Ideco	T-500	T-800	T-1000	T-1300	T-1600
Wirth	TPK1000	TPK1600	TPK2000
Wirth	TPK1000	TPK1600	TPK2000
LS National	3NB-500C	3NB1000C	3NB1300C	3NB1600	3NB800	3NB1300A
Drillmec	9T1000	12T1600
OTHER BRANNER: HONGHUA, QINGZHOU, WIRTH, OPI, ELLIS WILLIAMS, WILSON, GASO, SKYTO, BREWSTER, WETHERFORD
