EMC12 X5070 2 Flute Micro Ball End Mill

EMC12 X5070 2 Flute Micro Ball End Mill
EMC12 X5070 2 Flute Micro Ball End Mill
EMC12 X5070 2 Flute Micro Ball End Mill
: http://metalworking-tool.com/4-10-emc12-x5070-carbide-2-flute-micro-ball-end-mills.html
  • Provides excellent performance when cutting tool steels, alloy steels with hardness up to HRc70
  • Used for machining molds & dies
  • Super micro end mills are available with diameters ranging from 0.02~2.9mm Radius
  • 2 flute long neck design for machining deep cavity, deep slotting and deep pocketing

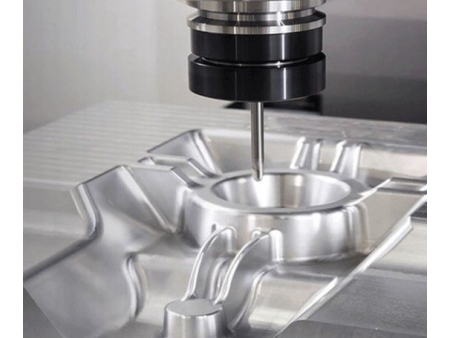

Application
Product Specifications
Coating AITISIN HRC HRC50/65/70
Helix Angle 30°/35° Shank Cylindrical H6
Material IMC™ UMG Carbide Rod Tolerance on Cutting Diameter 0-0.030
X5070 Carbide Ball End Mill, 2 Flute, Long Length - for RIB Processing（UNT-EMC12）
Unit: mm
UNT EDP # Click to Order Radius
R 		Effective Length
L3 		Shank Dia.
D2 		Flute Length
L1 		O.A.L.
L2 		Flutes
EMC120402 R0.2 2 4 0.5 50 2
EMC120404 R0.2 4 4 0.5 50 2
EMC120502 R0.25 2 4 0.6 50 2
EMC120504 R0.25 4 4 0.6 50 2
EMC120506 R0.25 6 4 0.6 50 2
EMC120602 R0.3 2 4 0.7 50 2
EMC120604 R0.3 4 4 0.7 50 2
EMC120606 R0.3 6 4 0.7 50 2
EMC120608 R0.3 8 4 0.7 50 2
EMC120802 R0.4 2 4 1 50 2
EMC120804 R0.4 4 4 1 50 2
EMC120806 R0.4 6 4 1 50 2
EMC120808 R0.4 8 4 1 50 2
EMC120810 R0.4 10 4 1 50 2
EMC121006 R0.5 6 4 1.5 50 2
EMC121008 R0.5 8 4 1.5 50 2
EMC121010 R0.5 10 4 1.5 50 2
EMC121012 R0.5 12 4 1.5 50 2
EMC121014 R0.5 14 4 1.5 60 2
EMC121016 R0.5 16 4 1.5 60 2
EMC121018 R0.5 18 4 1.5 60 2
EMC121020 R0.5 20 4 1.5 60 2
EMC121506 R0.75 6 4 2 50 2
EMC121508 R0.75 8 4 2 50 2
EMC121510 R0.75 10 4 2 50 2
EMC121512 R0.75 12 4 2 50 2
EMC121514 R0.75 14 4 2 60 2
EMC121516 R0.75 16 4 2 60 2
EMC121518 R0.75 18 4 2 60 2
EMC121520 R0.75 20 4 2 60 2
EMC122006 R1.0 6 4 2.5 50 2
EMC122008 R1.0 8 4 2.5 50 2
EMC122010 R1.0 10 4 2.5 50 2
EMC122012 R1.0 12 4 2.5 50 2
EMC122014 R1.0 14 4 2.5 60 2
EMC122016 R1.0 16 4 2.5 60 2
EMC122018 R1.0 18 4 2.5 60 2
EMC122020 R1.0 20 4 2.5 60 2
EMC123008 R1.5 8 6 4 60 2
EMC123010 R1.5 10 6 4 60 2
EMC123012 R1.5 12 6 4 60 2
EMC123014 R1.5 14 6 4 60 2
EMC123016 R1.5 16 6 4 60 2
EMC123018 R1.5 18 6 4 60 2
EMC123020 R1.5 20 6 4 60 2
EMC124012 R2.0 12 6 5 60 2
EMC124014 R2.0 14 6 5 60 2
EMC124016 R2.0 16 6 5 60 2
EMC124018 R2.0 18 6 5 60 2
EMC124020 R2.0 20 6 5 60 2
EMC124025 R2.0 25 6 5 60 2

• End mills with non-standard sizes or specifications not listed above can be customized according to customer needs.
