560RSSZ Digital Rockwell Hardness Tester, Automatic Type
Hardness Testing Machine
Request a quote
- Test force range: 3kgf (29.42N) ~ 150kgf (1471N)
- 560RSSZ Digital Rockwell hardness tester adopts electric loading and unloading of test force, eliminating the use of weight. It supports for testing of Rockwell and superficial Rockwell scales.
- It supports conversion scales of different kinds of hardness.
- This hardness tester features arc correction function.
- Touch screen is equipped for display and operation, capable of displaying dynamic curve and real-time monitioring of the working status of force sensor and displacement sensor.
Request a quote
- One-button operation allows automatic performing of the rising of specimen, the loading, dwelling and unloading of the indenter, displaying of the hardness, and homing of the test table.
- This hardness tester features data storage function, automatic calculation of maximum, minimum and average vaule.
- The test results can be printed for output and a RS232 port is designed for connecting to the computer for output.

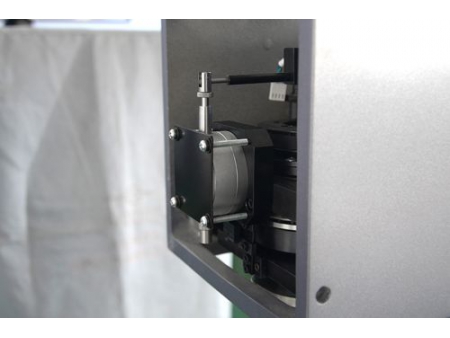

- High precision travel sensor

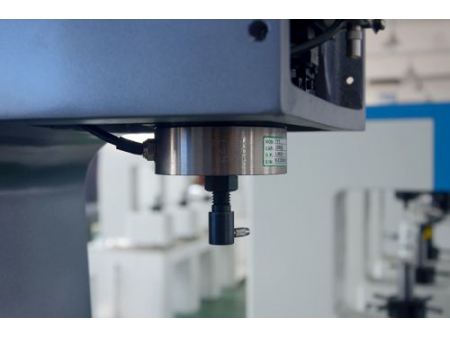

- High precision force sensor
- Thermal sensitive built-in printer
Applications
560RSSZ Digital Rockwell hardness tester is suitable for the testing on hard alloy steel, aluminum alloy, copper alloy, bearing alloy, galvanized, chrome and tin coated materials.
Technical Data
- Pre-load test force: 3kgf (29.42N), 10kgf (98.07N)
- Total test force: 15kgf (147.1N), 30kgf (294.2N), 45kgf (441.3N), 60kgf (588.4N), 100kgf (980.7N), 150kgf (1471N)
- Max. sample height: 310mm
- Indenter: diamond Rockwell indenter, 1.588mm tungsten carbide ball indenter
- Loading method: automatic (loading/dwell/unloading)
- Hardness reading: LCD touch screen
- Test scale: HRA, HRD, HRC, HRFW, HRBW, HRGW, HRHW, HREW, HRKW, HRL, HRM, HRP, HRR, HRS, HRV, HR15N, HR30N, HR45N, HR15TW, HR30TW, HR45TW, HR15W, HR30W, HR45W, HR15X, HR30X, HR45X, HR15Y, HR30Y, HR45Y
- Conversion scale: HV, HK, HRA, HRBW, HRC, HRD, HREW, HRFW, HRGW, HRKW, HR15N, HR30N, HR45N, HR15TW, HR30TW, HR45TW, HBS, HBW, HSD, HLD
- Hardness resolution 0.1HR
- Dwell time: 0~99s
- Throat depth: 150mm
- Execute standard: ISO 6508, ASTM E18, JIS Z2245, GB/T 230.2
