Cutting & Grinding Wheels for Non-Ferrous Metals

: http://indus-abrasives.com/4-2-2-nonferrous-metal-cutting-grinding-wheels.html

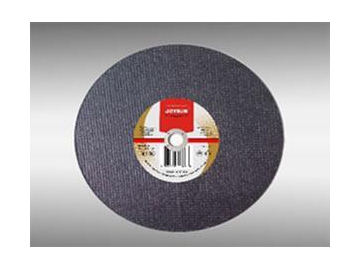

Joysun cutting & grinding wheels for non-ferrous metals feature a resin bonded structure that is suitable for high-speed cutting and grinding for non-ferrous metals such as aluminum, brass and many more.

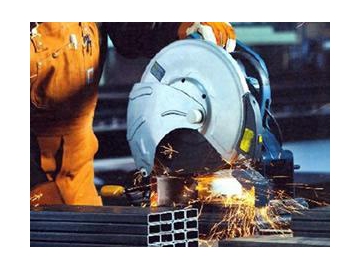

Portable angle grinders
For all ferrous metals, Steels, Structural steels, Steel pipe, Welds in single grit

Availability

Product Code	JAC-K526CG	JAC-K526CG	JAC-K526CG
Abrasive Grains	Aluminum Oxide	Aluminum Oxide	Aluminum Oxide
Workpiece Materials	Inox / Non-Ferrous Metals	Inox / Non-Ferrous Metals	Inox / Non-Ferrous Metals

SIZE	SIZE	GRADE	SHAPE	MAX	STD	PROFESSIONAL	INDUSTRIAL	DIY
( D x T x H )	( D x T x H )	GRADE	SHAPE	RPM	PACK	PART #	PART #	PART #
4-1/2" x 1/8" x 7/8"	115.0 x 3.2 x 22.23 mm	A-24	Type-27	13,300	25	52601	52602	52603
4-1/2" x 1/8" x 5/8-11	115.0 x 3.2 x Hub mm	A-24	Type-27	13,300	25	52614	52615	52616
5" x 1/8" x 7/8"	125.0 x 3.2 x 22.23 mm	A-24	Type-27	12,200	25	52627	52628	52629
5" x 1/8" x 5/8-11	125.0 x 3.2 x Hub mm	A-24	Type-27	12,200	25	52630	52631	52632
6" x 1/8" x 7/8"	150.0 x 3.2 x 22.23 mm	A-24	Type-27	10,200	25	52643	52644	52645
6" x 1/8" x 5/8-11	150.0 x 3.2 x Hub mm	A-24	Type-27	10,200	25	52656	52657	52658
7" x 1/8" x 7/8"	178.0 x 3.2 x 22.23 mm	A-24	Type-27	8,500	25	52669	52660	52661
7" x 1/8" x 5/8-11	178.0 x 3.2 x Hub mm	A-24	Type-27	8,500	25	52672	52673	52674
9" x 1/8" x 7/8"	230.0 x 3.2 x 22.23 mm	A-24	Type-27	6,500	25	52685	52686	52687
9" x 1/8" x 5/8-11	230.0 x 3.2 x Hub mm	A-24	Type-27	6,500	25	52698	52699	52690
