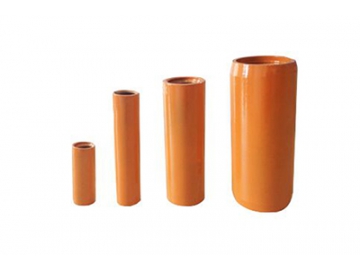

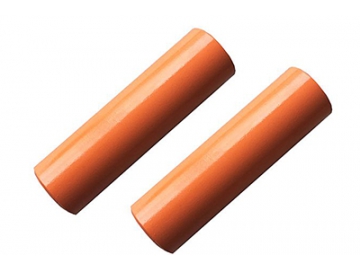

The couplings are used to link anchor bars to make the anchor longer, thus promote its installation depth.

Features
  • Stable quality;
  • Thread is compatible with ISO and other international standards;
  • Precision-manufactured anchors with ≤ 0.25 mm tolerance;
  • Good mechanical performance.
Applications

Pre-supporting, micropiling for foundation underpinning, slope anchorage, etc.


Parameters
Thread size Length(mm) Outside diameter(mm) Unit weight (kg)
R25 150 36 0.6
R32 145 42 0.7
160 42 0.8
190 42 0.9
R38 180 51 1.4
220 51 1.7
R51 140 63 1.4
200 63 2
T76 220 95 4.7
T30 105 38 0.42
T40 140 54 1.1
140 57 1.3
T52 160 70 2.4
T73 235 89 3.7
245 95 5.7
T103 255 123 7.5
290 132 12.5
T127 255 139 7.5
Steel grade As per request
Thread direction Left hand / Right hand
Thread standard ISO 10208 / ISO 1720/ Other international standards
Hardness (HRC) HRC25~HRC30
Features All are designed with middle stop , O rings are available as per request.
