Receptacle Laser Diode Module Plug in Type

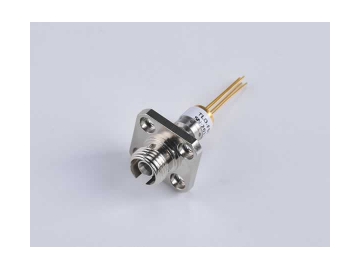

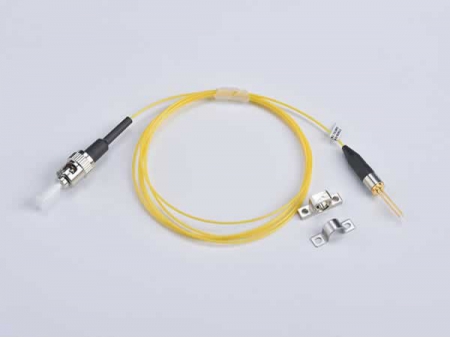

The 0.2-2mw 1310nm FP pigtailed laser diode module plug in type is provided in a coaxial plug-in package. It also uses a Fabry–Pérot cavity, which means it features a low threshold and operating current. In addition, the device can be supplied with an SC, ST, or FC connector. It is commonly used in handheld and desktop light sources, optical multi-meters, and communication test equipment.

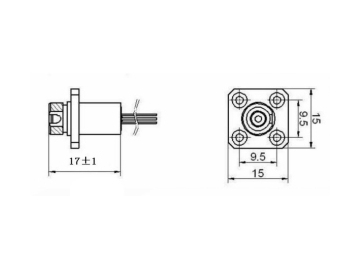

Bottom View
| Parameter | Symbol | Min. | Max. | Unit | Test Condition |
| Storage Temperature | Tstg | -40 | 100 | °C | - |
| Operating Temperature | Top | -40 | 85 | °C | - |
| Reverse Voltage | Vr | - | 2 | V | cw |
| Soldering Temp | - | - | 260 | °c | - |
| Soldering Time | - | - | 10 | s | s |
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Test Condition |
| Rated Power | Po | 0.2 | - | 2 | mW | Ith+20mA |
| Threshold Current | Ith | 3 | - | 12 | mA | CW |
| Forward Voltage Drop | Vop | - | 1.1 | 1.5 | V | CW, Ith+20mA |
| Cent Wavelength | λc | 1300 | 1310 | 1320 | nm | - |
| 1540 | 1550 | 1560 | ||||
| Spectrum Width(-3dB) | Δλ | - | 0.3 | 0.5 | nm | Ith+20mA |
| Bandwidth | Bw | 1.25 | 2.5 | - | GHz | RI=50Ω |
| Monitor Current | Im | 100 | | 900 | uA | CW, Ith+20mA |
| Dark Current of Monitor | Id | - | - | 100 | nA | CW, Ith+20mA |
| Optical Isolation | ISO | 30 | - | - | dB | 25℃ |
