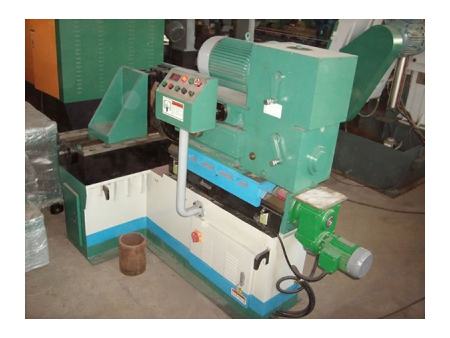

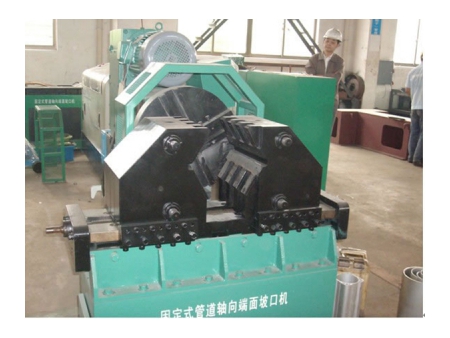

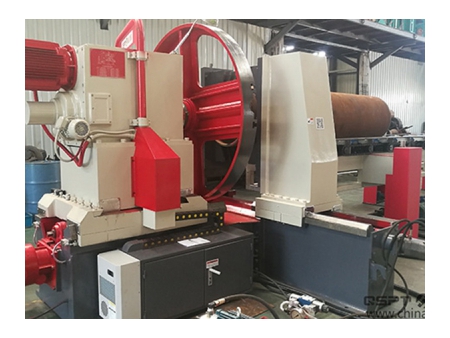

Axial Pipe End Beveling Machine
Model: PEBMF-16Ba /16BbFPEBM-24Ba/24Bb
Technical Parameters- Pipe Diameter: DN50-400(φ60-426)/DN50-600(φ60-610)
- Pipe Thickness: ≤12mm by each tool and bevel (single tool and each time)
- Pipe Materials: Carbon steel, alloy steel, stainless steel and cryogenic steel
- Type of Bevel: V
- Cutting Feeding Direction: Axial direction feeding cut
- Feed Displacement:150mm
- Rev of Main Shift: Stepless speed control and variable frequency
- Clamping System: Both sides centering clamping automatically by manual screw rod or hydraulic cylinder
- Bracket System: Screw lifting adjustable
- Control System: Gear shift and manual control; gear shift and PLC control
- Mechanical Aligning: At the end of beveling machine conveying system it can be equipped with lifting device if necessary to automatically adjust the center elevation of the pipe to bevel pipes with different diameters
Applications
The axial pipe end beveling machine is used for machining the V bevel for a number of pipes with standard wall thickness.
- The axial pipe end beveling machine has a beveling speed of ≤2 Min/ pipe bevel (DN200 SCH40).
- It offers bevel cutting of: cutting off the pipes with other cutting equipment then carry on beveling such as cutting band saw machines.
- The bevel quality of the axial pipe ending beveling machine is very good.
