VB24 Midi Bus Air Conditioner Manufacturer

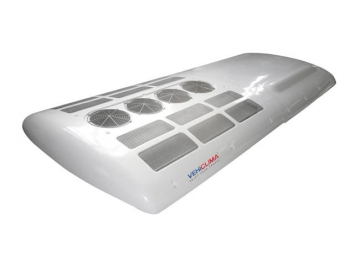

VB24 Midi Bus Air Conditioner

: http://auto-airconditioner.com/4-3-2-midi-bus-air-conditioner.html

Features

The roof-mount layout makes the midi bus air conditioner convenient to open and overhaul.
The fashionable streamline design perfectly integrates with the bus body.
With its high quality fiberglass epoxy resin case and cover, the midi bus air conditioner has high strength and high resistance to vibration and corrosion.
It has abundant cooling capacity, low noise and lower power consumption.
World-brand key parts assure the system's reliability and stability.
The water-proof electric fittings efficiently increase the system's reliability and lifespan of the electric parts.
Universal parts' application leads maintaining interchangeability, lowering after-sales service costs.
It can be used on 6.5-7.5 bus.

Technical specifications

Model		VB24
Standard Cooling Capacity		24kW (20640 Kcal/h, 81735 Btu/h)
Max Cooling Capacity		26kW (22360Kcal/h, 88545 Btu/h)
Refrigerant		HFCR134a
Compressor	Brand	UX330/TM31
Compressor	displacement	330cc/313cc
Evaporator	Type	Cooper Tube & Aluminium fins
	Blower Type	Double Axle Centrifugal Flow
	Blower Quantity	4
	Blower Output	4000 m3/h
	Dimension	1722×1700×177mm
Condenser	Type	Cooper Tube & Aluminium fins
	Fan Type	Axial Flow
	Fan Quantity	3
	Fan Output	6000 m3/h
	Dimension	1668×1700×177mm
Control System	Bus Interior Temperature	16℃-27℃ Adjustable
	Defrosting Protection	2℃
	High Pressure Protection	2.5Mpa
	Low Pressure Protection	0.05Mpa
Fresh Air Exchange Rate		25%
External Dimension		3390×1700×177mm
Total current		≤65A(24V)
Applying Buses		7.5-8m Bus, 35 seats.

Note: One year (12 months) warranty period since the date the products have been installed.

As a China-based midi bus air conditioner manufacturer, VehiClima Industry also offers DC electric powered bus air conditioner, container truck refrigeration unit, auxiliary power unit truck air conditioner, articulated bus air conditioner, window type special vehicle air conditioner, and more.
