Depressed Center Wheels for Non-Ferrous Metals

Request a Quote

Website: http://indus-abrasives.com/4-3-3-non-ferrous-metal-depressed-center-wheels.html

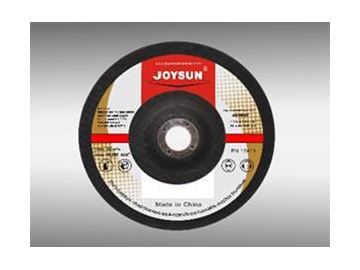

Joysun depressed center wheels for non-ferrous metals feature a resin bonded structure that is an optimal solution for high speed grinding operations for non-ferrous metals. These products are compatible with portable angle grinders for nearly limitless applications.

Portable angle grinders
For Stainless steel, Steel, Cast iron, High alloys, Welds in single grit

Availability

Product Code	JAC-K646GT	JAC-K646GG	JAC-K646GD
Abrasive Grains	Aluminum Oxide	Aluminum Oxide	Aluminum Oxide
Workpiece Materials	Non-Ferrous Metals	Non-Ferrous Metals	Non-Ferrous Metals

SIZE	SIZE	GRADE	SHAPE	MAX	STD	PROFESSIONAL	INDUSTRIAL	DIY
( D x T x H )	( D x T x H )	GRADE	SHAPE	RPM	PACK	PART #	PART #	PART #
4" x 1/4" x 5/8"	100.0 x 6.35 x 16.00 mm	A-24	Type-27	15,200	25	64601	64602	64603
4-1/2" x 1/4" x 7/8"	115.0 x 6.35 x 22.23 mm	A-24	Type-27	13,300	25	64614	64615	64616
4-1/2" x 1/4" x 5/8-11	115.0 x 6.35 x Hub mm	A-24	Type-27	13,300	25	64627	64628	64629
5" x 1/4" x 7/8"	125.0 x 6.35 x 22.23 mm	A-24	Type-27	12,200	25	64630	64631	64632
5" x 1/4" x 5/8-11	125.0 x 6.35 x Hub mm	A-24	Type-27	12,200	25	64643	64644	64645
6" x 1/4" x 7/8"	150.0 x 6.35 x 22.23 mm	A-24	Type-27	10,200	25	64656	64657	64658
6" x 1/4" x 5/8-11	150.0 x 6.35 x Hub mm	A-24	Type-27	10,200	25	64669	64660	64661
7" x 1/4" x 7/8"	178.0 x 6.35 x 22.23 mm	A-24	Type-27	8,500	25	64672	64673	64674
7" x 1/4" x 5/8-11	178.0 x 6.35 x Hub mm	A-24	Type-27	8,500	25	64685	64686	64687
9" x 1/4" x 7/8"	230.0 x 6.35 x 22.23 mm	A-24	Type-27	6,500	25	64698	64699	64690
9" x 1/4" x 5/8-11	230.0 x 6.35 x Hub mm	A-24	Type-27	6,500	25	64701	64702	64703
