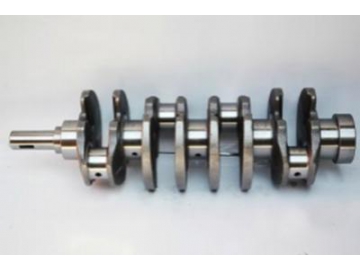

Forged Engine Crankshaft
Crankshafts are a major motorcycle engine rotating part, which after it has been connected to the connecting rod, will carry out the conversion between reciprocating and rotational motion. It is a key engine component, and is often made of carbons teel or nodular cast iron, with crankshaft rotation acting as the driving force for both the engine and overall mechanical system.
Solutions: Forged automobile, motorcycle engine
Material: Carbon steel SAE1035, SAE 1045, CM490
Precision: ±0.01mm
Production process- Steel preheating
- Cutting the steel into the proper size
- Forging
- Water/oil rust protection
- Packaging
- Delivery
Production capability
1. We have 1600 forged engine crankshafts for customers to choose from, all of which are extremely cost effective.
2. We use a warehouse management system that follows ISO/TS16949 quality management system standards and a 6S lean management system that covers SEIRI, SEITON, SEISO, SEIKETSU, SHITSUKE, and SECURITY, thus ensuring a long product service life, as well as an easy warehouse storage and organization.

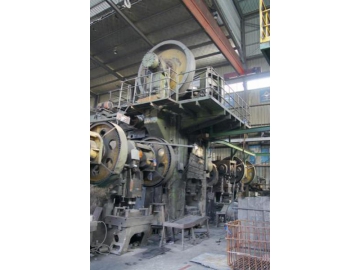

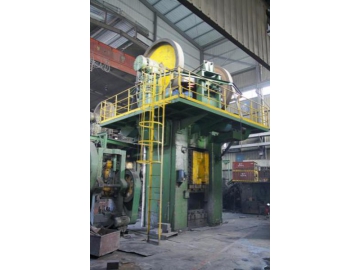

There are friction screw presses covering 630tons, 1000tons, 1600tons, and 2500tons for forgings production ranging from 1-25kg.
600-ton for forgings varying from 1-4 kg
1000-ton for forgings varying from 3-8 kg
1600-ton for forgings varying from 4-12 kg
2500-ton for forgings varying from 8-25 kg
4. We have 10 CNC processing centers, which are used for one-time processing of forgings with complex geometric shapes or with multiple processing procedures, making them more efficient and precise when compared to normal NC processing.
