Quayside Container Crane

: http://zgtostacrane.com/4-3-quayside-container-crane.html

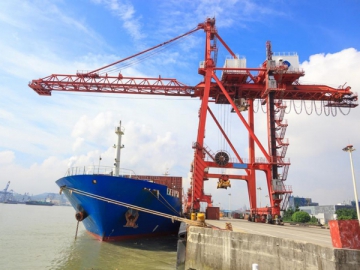

The quayside container crane is a gantry crane installed in a large wharf for loading and unloading ship-carried containers from ships.

The quayside container crane consists of a supporting frame that can travel on rails. It’s different from the general crane, which is equipped with a special spreader instead of a hook. The spreader can be locked on the container to perform lifting operation.

Quayside container cranes are often used in railway freight yards, ports, open warehouses, container transfer stations, etc.

Specification

Lifting capacity: 16~55t
Span: 10.5~22m
Lifting height: 16~38m
Working class: A8
Power supply: 380V, 50HZ, 3-phase AC

Features

The container crane can be used for large-span loading and unloading to improve work efficiency and facilitate operation.
The product can be designed according to customer requirements.

Packaging

Electrical components are packed in high-quality plywood crates to reduce deformation during transportation.
The main beams, end beams and other parts are packed with plastic woven cloth, which can reduce wear and tear during transportation.
If the size of the entire crane is suitable for a container ship, container transportation can be used.
