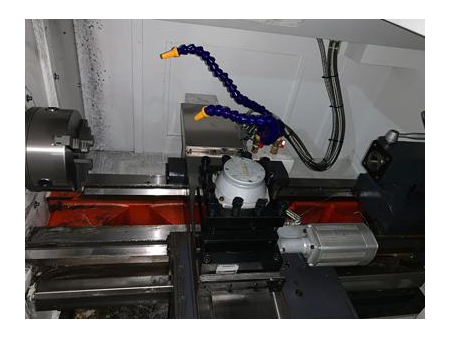

CNC Turning Center, Series CK6140

CNC Turning Center, Series CK6140
CNC Turning Center, Series CK6140
CNC Turning Center, Series CK6140
CNC Turning Center, Series CK6140
Request a Quote

This machine is suitable for processing all kinds of metal materials, various types of semi-finished accessories, for example bar, pipe material, casting, forging, casting parts and so on.

Parameters
Items Specifications
Stroke
Max. swim over bed φ360mm
Max. swim over carriage φ150mm
Max. length of work piece 450mm

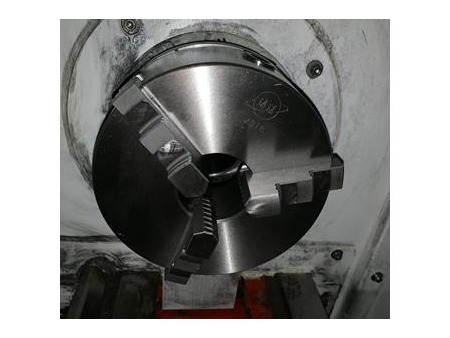

Spindle
Range of spindle speed 150-2500rpm
Spindle bore φ40mm
Spindle drawn tube diameter φ31mm
Taper of spindle bore MT5
Others

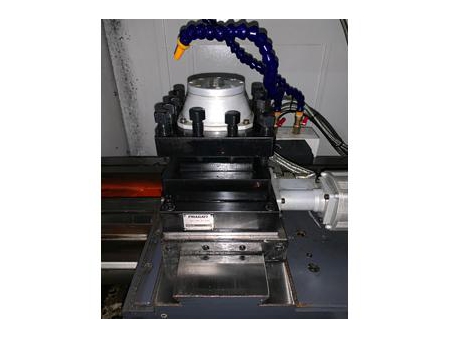

Stations of tool carrier 4
Max. size of tool post 20mmX20mm
Min. setting unit of motor (Z) 0.001mm, (X) 0.001mm
Moving speed of post (Z) 8m/min, (X) 4m/min
Taper of tailstock quill MT4
Max. range of tailstock quill 100mm
Motor power 4kW
Packing size 1820mm X 1100mm X 1550mm
Net weight/gross weight 1000/1200kg
