CO-S 6 Spindles Sewing Thread Winding Machine

CO-S 6 Spindles Sewing Thread Winding Machine
CO-S 6 Spindles Sewing Thread Winding Machine
CO-S 6 Spindles Sewing Thread Winding Machine
: http://solution-textile.com/4-5-co-s-6-spindles-sewing-thread-winding-machine.html

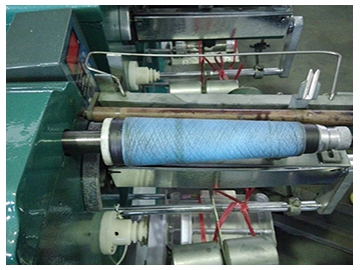

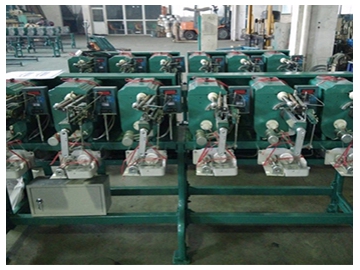

This CO-S6 spindles sewing thread winding machine is common in thread production facilities and adopts individual drive per spindle. It features the functions of automatic length counting and automatic tension adjusting which are simple and extremely practical. The functions of automatic power shut down and auto saving of parameters can guarantee production safety. The machine is ideally suited for operations without high production speed requirements and those on a budget.

Parameters
Shape of sewing thread Cone Column Horn/bugle Pineapple
Size 4” 5” 6” 2” 4” 5” 6” 4” 5” 6”
No.of spindles 6 spindle 6 spindles 6 spindles 6 spindles
Quantity of each spindle 2pcs 4-6pcs 2pcs 1pcs
Thread length 0-3000m 0-3000m 0-3000m 0-3000m
Motor 380V, 50Hz, 3 phase (or as client required)
Machine volume L2150×W700×H1200 mm
Net weight 600kgs
