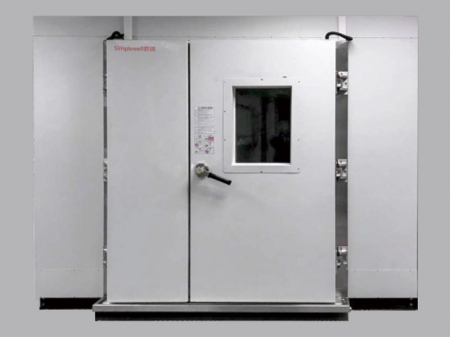

Auto Parts Sunlight Simulation Test Chamber

Auto Parts Sunlight Simulation Test Chamber
Auto Parts Sunlight Simulation Test Chamber
Auto Parts Sunlight Simulation Test Chamber
Auto Parts Sunlight Simulation Test Chamber
Auto Parts Sunlight Simulation Test Chamber
Auto Parts Sunlight Simulation Test Chamber
Request a Quote

Application

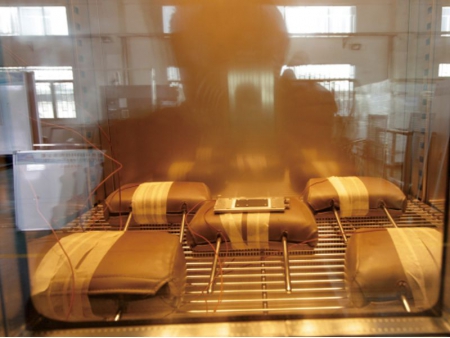

Auto parts sunlight simulation test chamber is applicable for testing the automotive interior parts such as IP, DP, Cockpit, CNSL, ashtrays, air outlets and other parts.

Technical parameters
temperature range -50°C~+120°C
Temperature deviation ≤±2 ℃
Temperature uniformity ≤2 ℃
Temperature fluctuation ≤±0.5 ℃
Heating rate ≤1℃/min or customized
Cooling rate ≤0.7℃/min or customized
Humidity range 20-95%rh
Humidity deviation ≤±5%rh
Humidity fluctuation ≤±2.5%rh
Light intensity 1200w/m2; When the air temperature is about 65 ℃, the surface temperature of the tested object can be controlled to 120 ℃
Low temperature relative humidity monitoring device is optional; relative humidity in low temperature is ≤ 30% rh
Self-compiling program control
Temperature and humidity control range without active heat load
Standards
PR308.2 2006 version, 70℃ 95%RH, 105℃ storage in high temperaturel
GB2423.1-2008(IEC68-2-1:2007) Test A :Low temperature test
GB2423.2-2008(IEC68-2-2:2007) Test B: High temperature test
GB2423.3-2006(IEC68-2-78:2001) Test Cab :Constant damp heat test (if there are requirements for humidity)
GB2423.4-2008(IEC68-2-30:2005) Test Db :Alternating damp heat test (if there are requirements for humidity)
GJB150.3A-1986 High temperature test
GJB150.4A-1986 Low temperature test
GJB150.9A-1986 Damp heat test (Figure 1, Figure 2)
GJB899-90 Reliability identification and acceptance test
GJB1032-90 Selecting method of environmental stress of electronic products
GB10589-2008 Technical specifications for low temperature test chamber
GB11158-2008 Technical specifications for high temperature test chamber
GB10586-2006 Technical specifications for damp heat test chamber
MS210-05
IEC60068-2-2, -3, -28, -30, -56
JJF1101-2003 Thermal stability test of automotive parts

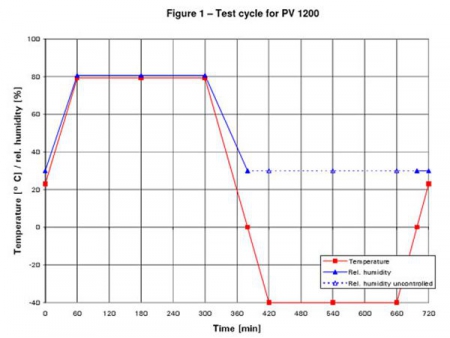

PV2005 Scheme A 2000 version PV1200 2004 version
