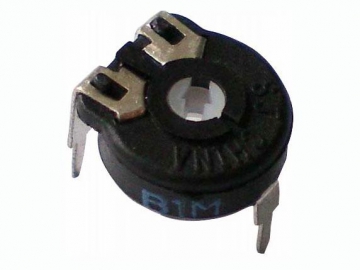

15mm Horizontal 100omhs Trimmer Potentiometer with Case, PT15-30 Series
Part Number
PT15-30
The 15mm horizontal trimmer potentiometer is equipped with a case in order to provide a precise adjustment and comfortable operational feel. It is ideal for a variety of industrial control applications, particularly in electrical appliances, instruments, and meters.
Parameters
| Diameters | 15MM |
| Mounting direction | horizontal |
| Total rotational angle | 260°±10° |
| Rotational torque | 10~200gf.cm |
| Stopper strength | ≥1kgf |
| Total resistance | 100Ω-2MΩ |
| Resistance tolerance | ±20% |
| Rated power | ≤0.25W |
| Voltage Resistance | 250V |
| Operating life | ≥10000cycles |
| type | with case |
