Pro Boundary Microphone & Phantom Power Unit

Pro Boundary Microphone & Phantom Power Unit
Pro Boundary Microphone & Phantom Power Unit
Pro Boundary Microphone & Phantom Power Unit
Pro Boundary Microphone & Phantom Power Unit
Pro Boundary Microphone & Phantom Power Unit
Pro Boundary Microphone & Phantom Power Unit

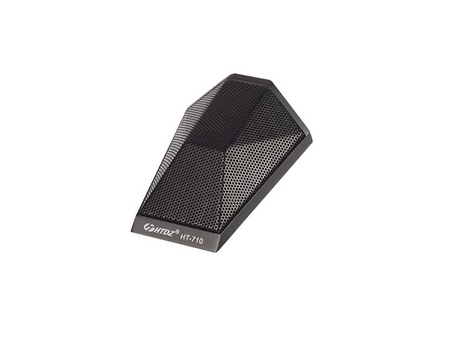

  • HT-710
  • HT-720

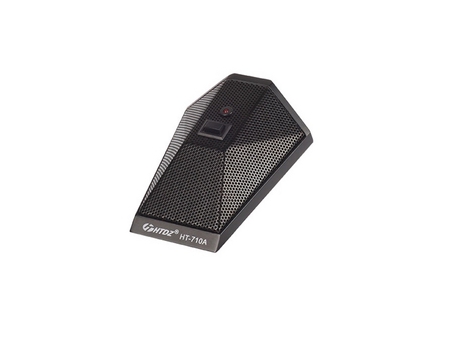

  • HT-710A
Model No. HT-710 HT-720 HT-710A
Capsule Type Condenser Condenser Condenser
Frequency Response 20Hz-20kHz 20Hz-20kHz 30Hz-20kHz
Polar Pattern Hypercardioid Hypercardioid Hypercardioid
Output Impedance(Ohm) 75 - Balanced 75 - Balanced 75 - Balanced
Sensitivity (±2dB) -36dB -36dB -36dB
Power Supply Phantom 48V Phantom 48V Phantom 48V
Max SPL (dB) 105 105 105
S/N Ratio 85dB 85dB 67dB
N.W. 115g 115g 115g
Dimension (mm) 75x100x20 69x89x18 75x100x20

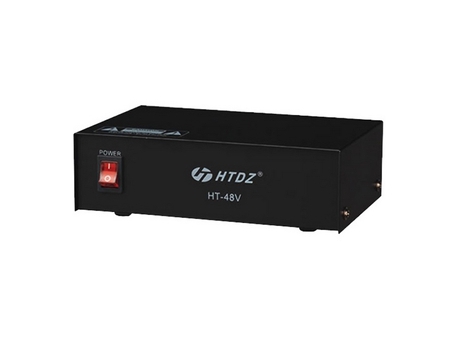

  • HT-48V
  • HT-48V2

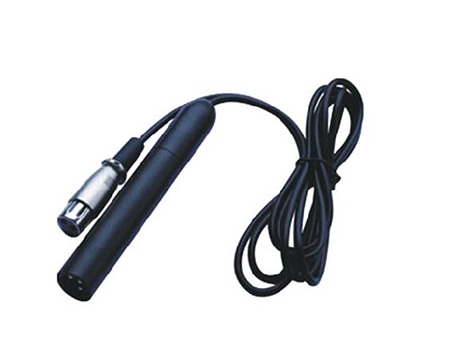

  • HT-320F Power Switcher
Model No. HT-48V HT-48V2 HT-320F Power Switcher
Input Power AC 220V AC 220V DC1.5V
Output Power Phantom power 48V Phantom power 48V Phantom power 48V
Output Current 6.5mA 6.5mA 6.5mA
Compatible Phantom 48V microphone Phantom 48V microphone Phantom 48V microphone
N.W. 0.64kg 0.75kg 0.14kg
Input Type XLRx1 XLRx2 XLRx1
Output Type XLRx1 XLRx2 XLRx1
Dimension (mm) 160x104x46 182x104x46 Diameter 22, Length 150
Color Black Black Black
