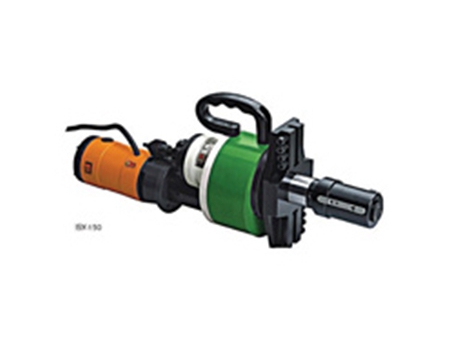

Portable Pipe Bevelling Machine
Model: MPEBM-60A2/60A1/52A2/52A1/42A2/42A1/34A2/34A1/30A2/30A1/24A2/24A1/14A2/14A1/10A2/10A1/06A/03A/01A
Technical Specifications- Pipe diameters: φ1270-1500/φ1270-1500/φ1030-1300/φ1030-1300/φ820-1050/φ820-1050/φ600-850/φ600-850/φ500-750/φ500-750/φ300-600/φ300-600/φ150-330/φ150-330/φ80-240/φ80-240/φ65-159/φ28-76/φ16-28 (mm)
- Pipe wall thickness: 75/15/75/15/75/15/75/15/75/15/75/20/75/20/75/20/20/15/15(mm)
- Bevel shape: I or V
- Structure type: II type/Y type/II type/Y type/ II type/Y type/II type/Y type/ II type/Y type/II type/Y type/II type/Y type/II type/Y type /Y type/T type/ T type
- Clamping system: After quick expanding of the system, the workpiece is automatically positioned.
- Drive system: electric motor, hydraulic motor, or pneumatically drive system
- Beveling Capacity: ≤6Min / bevel (DN200 SCH40)
- Before cut bevels using this portable type beveling machine, the pipe end should be cut by band saw or other types of pipe cutters.
- The machine offers high bevel cutting quality and very good mobility.
- It provides an ideal solution for I shaped and V shaped bevel cutting for small quantity common pipes. The pipe material can be carbon steel, alloy steel, stainless steel and cryogenic steel.
