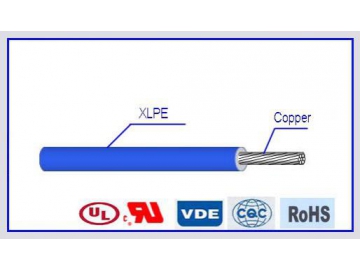

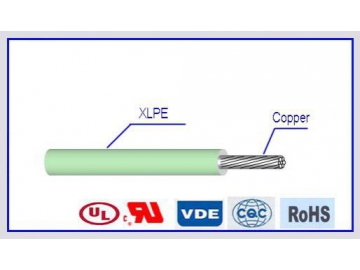

AWM 3611 Cross Linked PVC Insulated Electric Wire
Conductor: Bare, tinned copper
Insulator: Irradiated XL PVC
Rated volt.: 600V/750V
Test voltage: 2000V. 1Min
Rated temp.: 105℃
Application
AWM 3611 cross linked PVC insulated electric wires are used very popularly in the home electric appliance, lighting, AUTO wire harness, aviation, military, instruments, plug etc.
| Size | Cross-Section | Conductor | Insulation thickness | Wire OD | Resistance | ||
| Structure | OD | Nominal | Nominal | Toler. | 20℃ Max. | ||
| AWG | mm² | No./mm | mm | mm | mm | mm | Ω/KM |
| 20 | 0.519 | 21/0.18 | 0.96 | 0.51 | 2.00 | ±0.10 | 34.6 |
| 10/0.254 | |||||||
| 26/0.16 | |||||||
| 7/0.31 | |||||||
| 19 | 0.653 | 26/0.18 | 1.10 | 0.51 | 2.15 | ±0.10 | 29.1 |
| 18 | 0.823 | 33/0.18 | 1.20 | 0.51 | 2.25 | ±0.10 | 23.2 |
| 16/0.254 | |||||||
| 7/0.39 | |||||||
| 24/0.20 | |||||||
| 17 | 1.04 | 21/0.254 | 1.38 | 0.51 | 2.40 | ±0.10 | 20 |
| 40/0.18 | |||||||
| 32/0.20 | |||||||
| 16 | 1.31 | 26/0.254 | 1.55 | 0.51 | 2.60 | ±0.20 | 14.6 |
| 7/0.49 | |||||||
| 52/0.18 | |||||||
| 15 | 1.65 | 33/0.254 | 1.75 | 0.51 | 2.80 | ±0.20 | 11.3 |
| 14 | 2.08 | 41/0.254 | 1.95 | 0.51 | 3.00 | ±0.20 | 8.96 |
| 7/0.62 | |||||||
| 13 | 2.63 | 52/0.254 | 2.19 | 0.51 | 3.25 | ±0.20 | 7.10 |
| 12 | 3.31 | 65/0.254 | 2.44 | 0.51 | 3.50 | ±0.20 | 5.64 |
| 11 | 4.17 | 83/0.254 | 2.74 | 0.51 | 3.80 | ±0.20 | 4.48 |
| 10 | 5.261 | 105/0.254 | 3.43 | 0.51 | 4.45 | ±0.20 | 3.55 |
| 9 | 6.631 | 53/0.40 | 3.98 | 0.51 | 5.00 | 0.30 | 2.81 |
| -0.20 | |||||||
| 8 | 8.367 | 70/0.40 | 4.40 | 0.76 | 5.95 | 0.30 | 2.30 |
| -0.20 | |||||||
| 7 | 10.55 | 84/0.40 | 4.60 | 1.02 | 6.65 | 0.30 | 1.79 |
| -0.20 | |||||||
| 6 | 13.30 | 105/0.40 | 5.30 | 1.02 | 7.35 | 0.30 | 1.42 |
| -0.20 | |||||||
| 5 | 16.77 | 133/0.40 | 6.00 | 1.02 | 8.05 | 0.30 | 1.12 |
| -0.20 | |||||||
| 4 | 21.15 | 168/0.40 | 6.80 | 1.02 | 8.85 | 0.30 | 0.89 |
| -0.20 | |||||||
| 3 | 26.67 | 210/0.40 | 7.60 | 1.02 | 9.65 | 0.30 | 0.707 |
| -0.20 | |||||||
| 2 | 33.62 | 266/0.40 | 8.50 | 1.02 | 10.55 | 0.40 | 0.56 |
| -0.20 | |||||||
Mechanical Properties
Tensile strength: ≥10.3N/mm2
Elongation at break of insulation: ≥150%
Min. bending radius: 6×OD
Standard: UL758, UL62 and UL1581
Meet with RoHS, REACH rules.
Characteristics
PVC wire has good performance in corrosion resistant and anti-chemical liquid, acid, alkali, excellent thermal stability. It is light weight and competitive price for customer’s choice.
We adopted good quality PVC to assure our extruded wire can meet with strict quality control.
