AL-PEX Fitting, Brass Fittings
Our AL-PEX fittings are generally made of CW617N brass and CU57-3 brass, though for special requirements, we do use other materials such as DZR.
We will also customize special rings according to customer requirements, with the ring processed into a barbed shape to prevent the tube from falling off when pressure reaches more than 10 kg.
We can provide AL-PEX fittings from size 16mm x 1/2’’ to size 32mm x 1’’, with the following structural forms: straight, elbow, tee, wall-plated, etc.
Shown here are products we can provide, and we are proud to offer customization services in terms of shape, material, weight, and size.
- Male Straight Al-PEX Fittings Nickel Plated
- Model:
VF-0100- Specification:
16mm x 3/8"
16mm x 1/2"
16mm x 3/4"
18mm x 1/2"
18mm x 3/4"
20mm x 1/2"
20mm x 3/4"
26mm x 3/4"
26mm x 1"
32mm x 1" - Female straight Al-PEX Fittings Nickel Plated
- Model:
VF-0101- Specification:
16mm x 1/2"
16mm x 3/4"
18mm x 3/4"
18mm x 1/2"
20mm x 1/2"
20mm x 3/4"
26mm x 3/4"
26mm x 1"
32mm x 1"

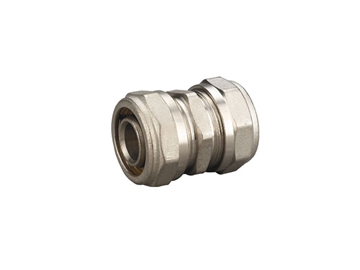

- Straight Al-PEX Fittings Nickel Plated
- Model:
VF-0102- Specification:
16mm x 16mm
18mm x 18mm
20mm x 16mm
20mm x 20mm
26mm x 26mm
32mm x 32mm

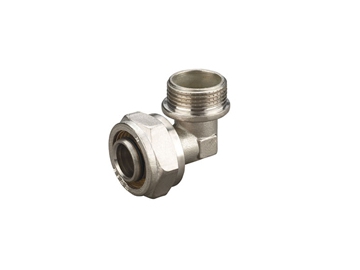

- Male Elbow Al-PEX Fittings Nickel Plated
- Model:
VF-0103- Specification:
16mm x 1/2"
18mm x 1/2"
20mm x 1/2"
20mm x 3/4"
26mm x 3/4"
32mm x 1"

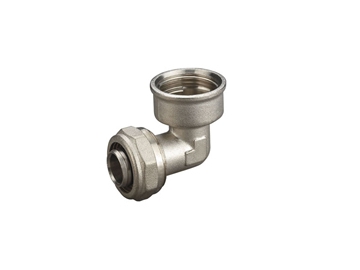

- Female Elbow Al-PEX Fittings Nickel Plated
- Model:
VF-0104- Specification:
16mm x 1/2"
18mm x 1/2"
20mm x 3/4"
20mm x 1/2"
26mm x 3/4"
26mm x 1"

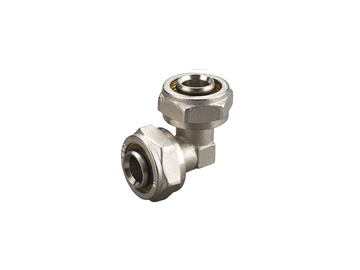

- Elbow Al-PEX Fittings Nickel Plated
- Model:
VF-0105- Specification:
16mm x 16mm
18mm x 18mm
20mm x 20mm
25mm x 25mm
26mm x 26mm
32mm x 32mm

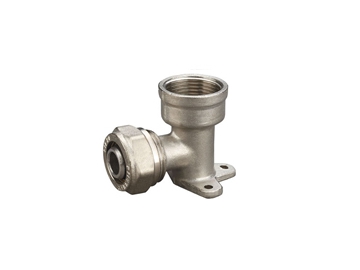

- Wall Seat Al-PEX Fittings Nickel Plated
- Model:
VF-0106- Specification:
16mm x 1/2"
18mm x 1/2"
20mm x 1/2"
20mm x 3/4"

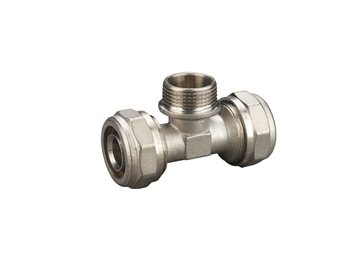

- Male Tee Al-PEX Fittings Nickel Plated
- Model:
VF-0110- Specification:
16mm x 1/2"
18mm x 1/2"

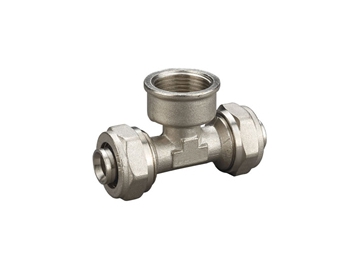

- Female Tee Al-PEX Fittings Nickel Plated
- Model:
VF-0111- Specification:
16mm x 1/2"
18mm x 1/2"
20mm x 1/2"
20mm x 3/4"
26mm x 3/4"
26mm x 1"
32mm x 1"

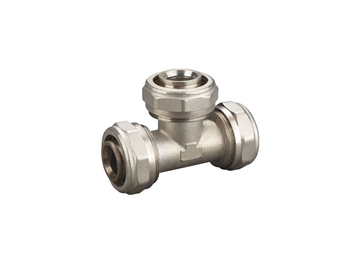

- Tee Al-PEX Fittings Nickel Plated
- Model:
VF-0112- Specification:
16mm x 16mm x 16mm
18mm x 18mm x 18mm
20mm x 20mm x 16mm
26mm x 16mm x 26mm
26mm x 20mm x 26mm
20mm x 20mm x 20mm
20mm x 16mm x 20mm
26mm x 26mm x 26mm
32mm x 32mm x 32mm
