Apron Feeder, YZ Series

: http://crushing-grinding.com/4-feeding.html

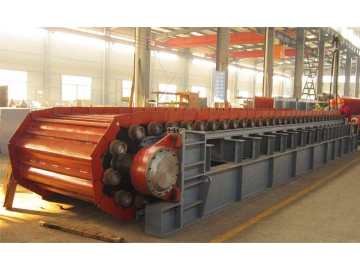

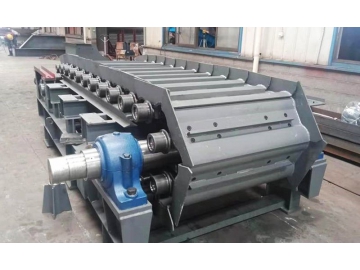

Yate YZ series apron feeder, also known as a pan feeder, is a mechanical type of feeder used in material handling operations to transfer (feed) material to other equipment or extract material (ore/rock) from storage stockpiles, bins or hoppers at a controlled rate of speed. The apron feeder is generally applied as a primary or bin feeder application designed for varying applications, from light-duty to severe-duty, from low tonnage to high tonnage of material. Due to its advanced design, excellent configuration and safe operation, this type of apron feeder is widely applicable in mining, cement and metallurgical industries, etc. It also enjoys a good reputation among those fields.

Features

The apron feeder can convey bigger particle size of conveyed materials, with the diameter of the materials reaching 1.5 meters;
The bin height of the apron feeder is up to 10 meters, which results in better performance of withstanding greater bin pressure and discharge impact;
Standard undercarriage components of the apron feeder yields a reliable and long-life feeder;
Superior flight sealing overlap design of the apron feeder can reduce the leakage of fines;
The apron feeder provides better feed control to prevent material feeding in downstream equipment from choking;
This type of apron feeder can reclaim a variety of dry or wet materials of various sizes at a uniform rate;
This style of apron feeder also creates less noise pollution for quieter operation;
Less maintenance and better feed control;
Large anti-friction spherical bearings on the head shaft results in long bearing life;

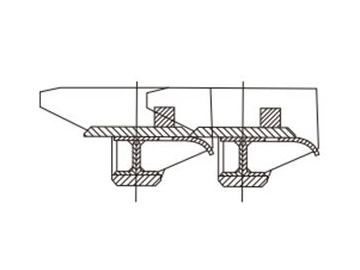

Single circular arc chain plate

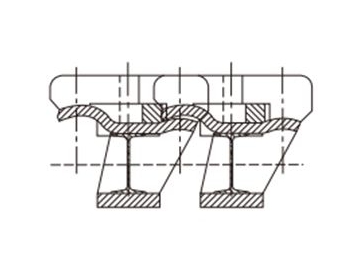

Double circular arc chain plate

Technical data of the apron feeder

Model	GBZ100-7	GBZ110-6	GBZ120-3	GBZ120-4.5	GBZ120-10	GBZ125-4	GBZ125-6
Dimension (mm)	1000×7000	1100×6000	1200×3000	1200×4500	1200×10000	1250×4000	1250×6000
Width of the undercarriage chain (mm)	1000	1100	1200	1200	1200	1250	1250
Shafts distance (mm)	7000	6000	3000	4500	10000	4000	6000
Maximum feed size (mm)	600	700	750	750	750	800	800
Feeding speed (m/s)	0.04-0.1	0.04-0.1	0.04-0.1	0.04-0.1	0.04-0.1	0.04-0.1	0.04-0.1
Feeding capacity (t/h)	100-200	100-200	100-200	100-200	100-200	150-250	150-250
Model of gear box	NGW-S-103	NGW-S-103	NGW-S-103	NGW-S-103	NGW-S-123	NGW-S-103	NGW-S-113
Motor power (kW)	18.5	15	11	11	22	11	15
Undercarriage chain pitch (mm)	216	216	216	216	216	216	216
Weight (t)	27.27	24.29	21.52	24.38	36.72	23.6	26.11

Model	GBZ125-7	GBZ125-9	GBZ150-6	GBZ150-8	GBZ150-9	GBZ160-5	GBZ160-6
Dimension (mm)	1250×7000	1250×9000	1500×6000	1500×8000	1500×9000	1600×5000	1600×6000
Width of the undercarriage chain (mm)	1250	1250	1500	1500	1500	1600	1600
Shafts distance (mm)	7000	9000	6000	8000	9000	5000	6000
Maximum feed size (mm)	750	750	900	900	900	1000	1000
Feeding speed (m/s)	0.04-0.1	0.04-0.1	0.04-0.1	0.04-0.1	0.04-0.1	0.04-0.1	0.04-0.1
Feeding capacity (t/h)	150-250	150-250	200-300	200-300	200-300	200-350	200-350
Model of gear box	NGW-S-113	NGW-S-113	NGW-S-123	ZJX-8	ZJX-8	NGW-S-113	NGW-S-123
Motor power (kW)	18.5	22	22	22	22	22	22
Undercarriage chain pitch (mm)	216	216	216	216	216	216	216
Weight (t)	29.16	35.69	31.4	40.33	44.54	30.13	34.63

Model	GBZ160-8	GBZ180-8	GBZ180-10	GBZ200-12	GBZ220-10	GBZ240-5	GBZ240-10
Dimension (mm)	1600×8000	1800×8000	1800×10000	2000×12000	2200×10000	2400×5000	2400×10000
Width of the undercarriage chain (mm)	1600	1800	1800	2000	2200	2400	2400
Shafts distance (mm)	8000	8000	10000	12000	10000	5000	10000
Maximum feed size (mm)	1000	1100	1100	1200	1350	1450	1450
Feeding speed (m/s)	0.04-0.08	0.04-0.08	0.04-0.08	0.04-0.08	0.04-0.08	0.04-0.08	0.04-0.08
Feeding capacity (t/h)	200-350	250-400	250-400	250-450	300-500	300-800	300-800
Model of gear box	ZJX-8	ZJX-17	ZJX-17	ZJX-17	ZJX-17	ZJX-8	ZJX-28
Motor power (kW)	22	30	37	55	55	30	55
Undercarriage chain pitch (mm)	216	216	216	228.6	228.6	216	228.6
Weight (t)	43.23	45.26	55.18	75.3	66.34	36.52	72.25
