PEEK Braided Sleeving

: http://sleeving-product.com/4-peek-plastic-braided-sleeving.html

Material: PEEK filament (Polyetheretherketone)
Working temperature: -70℃-260℃
Fireproofing grade: 94-V0
Expansion range: 1-3times
Product certification: SGS

PEEK plastic braided sleeving is made using a PEEK filament. PEEK is the short name for polyetheretherketone, and this sleeving features an outstanding fire resistance, high temperature resistance, wear resistance, corrosion resistance, high strength, UV resistance and small thermal expansivity. This material can work for long periods of time at 250℃ with a low trapping of moisture. PEEK plastic braided sleeving is a popular choice due to its capability to work normally even in high temperature, pressure and humidity environments.

Application

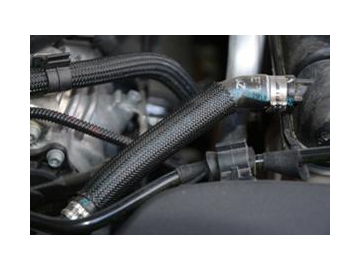

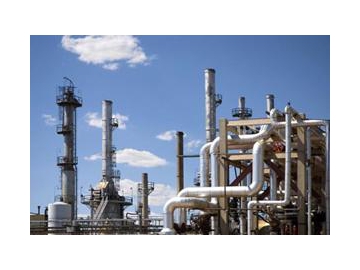

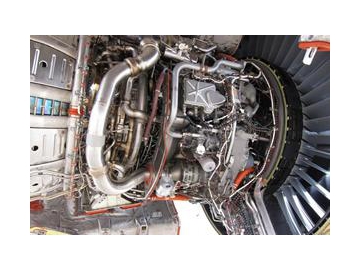

PEEK plastic braided sleeving is widely used in aerospace, automotive, telecommunications and chemical industries.

Optional specification

Model	Nominal Size		Expansion Range		Ends	Strands	Packing		INQUIRY
Model	mm	inch	mm	inch	Ends	Strands	M/R	FT/R	INQUIRY
MX-PEEK003	3.2	1/8	2.4-6.4	3/32-1/4	1	32	1000	3280
MX-PEEK006	6.4	1/4	3.2-11.1	1/8-7/16	3	24	600	1968
MX-PEEK008	7.9	5/16	3.8-12.7	2.5/16-1/2	3	32	400	1312
MX-PEEK010	9.5	3/8	4.7-15.9	3/16-5/8	3	36	300	984
MX-PEEK012	12.7	1/2	6.4-19.1	1/4-3/4	3	48	300	984
MX-PEEK016	16	5/8	9.5-25.4	3/8/1	3	56	300	984
MX-PEEK019	19	3/4	12.7-31.8	1/2-1 1/4	3	64or72 Nylon Braided Sleeving	300	984
MX-PEEK025	25.4	1	15.9-41.3	5/8-1 5/8	4	64	200	656
MX-PEEK032	32	1 1/4	19.1-44.5	3/4-1 3/4	3	96	200	656
MX-PEEK038	38.1	1 1/2	25.4-63.5	1-2 1/2	4	96	100	328
MX-PEEK045	45	1 3/4	31.8-69.9	1 1/4-2 3/4	4	120	100	328
MX-PEEK051	51	2	38.1-88.9	1 1/2-3 1/2	5	120	100	328
MX-PEEK064	64	2 1/2	44.5-114.3	1 3/4-4 1/2	6	120	100	328
MX-PEEK076	76	3	63.5-120	2 1/2-4 3/4	5	144	100	328

Note: Please call or email us for other specifications.
