Ozone Cell (with Ceramic Tube)

: http://ntozonegenerator.com/5-1-1-ozone-cell/227509/index.html

OEM 1g to 50g ozone generator parts ozone ceramic tube for water treatment

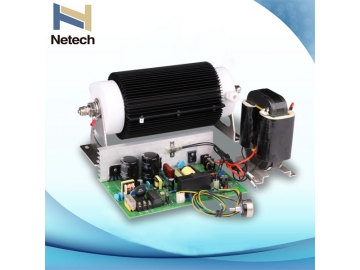

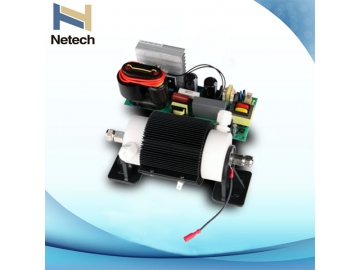

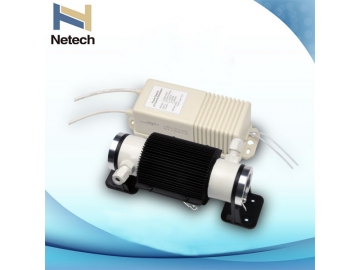

Air cooling ceramic ozone tube

The ozone cell with ceramic tube uses imported ceramic, SS 316L internal electrodes, and anti-oxidant Teflon connections to ensure a long service life.

Features
1. Extremely low rate of ozone decay and high ozone concentration: Ozone concentration can be around 30-86 Mg/L.
2. In 2008: This ozone cell is air cooled for internal and external electrodes with a low temperature rise during continuous operation.
3. Low working voltage: The working voltage is 10% of similar products producing a stable capacity with low ozone dissipation.
4. Small and compact: The ceramic ozone generator effectively saves space as it is 1/4 the size of similar products.
5. Ozone output is adjustable: 20%-100%.
6. There are two timer options: The ceramic air purifier can work for anywhere between 5-30 minutes or continuously.
7. CE approved

Functions
1. Clean: destroys bacteria and viruses without secondary pollution in the air, on food, and on textiles.
2. Detoxification: removes residual pesticides from vegetables and fruits.
3. Deodorization: eliminates molds, smoke, and odors.
4. Purification: purifies air and water and increases oxygen levels.
5. Health: clean air and drinking water.

CH-PTF1G 3G

Item	Unit	CH-PTF
Item	Unit	1G (12V)	1G (220V)	1G (110V)	3GM	3GA
Ambient temperature	℃	21.6	25	23.6	21
Ambient humidity	%	40	50	21.6	40
Power	W	≤14.4	≤15	≤15	≤50	≤80
Oxygen feed flow rate	LPM	0.3~0.5	0.3~1	0.3~1	0.5-1
Ozone concentration	Mg/L	49~40	49~30	49~30	81.6-49.2
Ozone output	G/Hr	0.88~1.2	0.88~1.8		2.4-2.95
Ozone output adjustable range	%	/			/	20~100
Line power supply	V/Hz	110/60 220/50
Cooling method	/	Air cooling
Diameter of cooling fan	mm	50*50	50*50	50*50	120
Diameter of gas inlet/outlet	mm	EDФ6
Power supply dimensions	mm	1055750	964732	964732	153×60×53	201×86×83
Ozone tube dimensions	mm	1255050			165×90*90
Ozone tube weight	Kg	0.2			0.5
Power supply weight	Kg	0.15			0.59	0.76

CH-PTF5G 7G

Item	Unit	CH-PTF
Item	Unit	5GM	5GA	6GM	6GA	7GA
Ambient temperature	℃	21	21	26		26
Ambient humidity	%	40		49		49
Power	W	≤65	≤80	≤80	≤85	≤95
Oxygen feed flow rate	LPM	0.5-2		1~3		1~3
Ozone concentration	Mg/L	72~48		64.6~36.7		70~41.2
Ozone output	G/Hr	2.16~4.76		3.9~6.6		4.20~7.4
Ozone output adjustable range	%	/	20~100	/	20~100	20~100
Line power supply	V/Hz	110/60 220/50
Cooling method	/	Air cooling
Diameter of cooling fan	mm	150
Diameter of gas inlet/outlet	mm	EDФ6
Power supply dimensions	mm	1776653	2018683	1776653	2018683	2018683
Ozone tube dimensions	mm	1859090		2009090		2129090
Ozone tube weight	Kg	0.53		0.56		0.65
Power supply weight	Kg	0.59	0.76	0.59	0.76	1.1

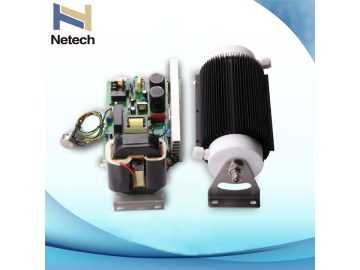

Air and water cooling ceramic ozone tube

Imported ceramic, SS 316L internal electrodes, and anti-oxidant Teflon connections ensure a long service life.

CH-PT 7-50G/Hr

Item	Unit	CH-PT
Item	Unit	7GM	7GA	15GA	30GA	50GA
Ambient temperature	℃	28		21.9	22	26
Ambient humidity	%	37		39	38	44
Oxygen feed flow rate	LPM	1~3		3~5	7~9	15~18
Ozone concentration	Mg/L	70-40		66.4~53	62~53	52~49
Ozone output	G/Hr	4.2~7.2		11.9~15.9	26~28.6	46.8~52.9
Power (220V)	W	≤100	≤100	≤190	≤300	≤500
Current ±10%	A	0.45		0.86	1.4	1.9
Cooling method		Air cooling for external electrode,water cooling for internal electrode
Cooling water flow rate	LPM	>2
Diameter of cooling water pipe	mm	EDФ10
Temperature of cooling water	℃	Ambient temperature ±8 ℃
Diameter of cooling fan	mm	1pcs Dia.150 fan				2pcs Dia.150 fan
Diameter of gas inlet/outlet	mm	EDФ6			EDФ8	EDФ8
Ozone output adjustable range	%	/	20-100	20-100
Line power supply	V/Hz	110/60 220/50
Ozone tube dimensions	mm	200×100×105		260×100×105	340×160×125	325×135×150
Power supply dimensions	mm	177×66×53	201×86×83	212×90×95	189×146×95	210×146×62
Weight of power supply	KG	1.27		1.0	2.45	2.35
Weight of ozone tube	KG	0.91		1.35	1.9	4.3
