Alloy Steel Clevis Choker Hook

Alloy Steel Clevis Choker Hook
Alloy Steel Clevis Choker Hook
Request a Quote

Features
● It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated;
● It can be matched with sling and G80 chains which can meet the standard EN818-2.
● Each workpiece should pass testing at 2.5 times of working load limit;
● We should carry out sampling and 20000 times of fatigue testing;
● We should carry out strict sampling and breakage testing for each batch of products;
● We should carry out 100% magnetic powder flaw detection;
● 100% of the pin should be tested to ensure that they have the same hardness;
● Surface treatment: plastics spraying.
● Color code: red RAL3020 yellow RAL1003.

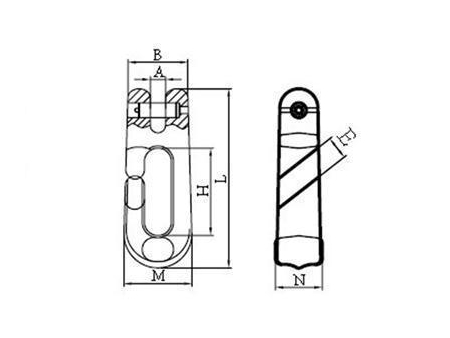

Parameters (Unit: mm)
Item Code Weight (kg) Woring Load Limit (t) Breaking Load (t) A±1 B±2 H±2 M±2 N±1 E±1 L±2
8-SLR389-08 0.68 2 8 10.5 41 60 46.5 32 16 123

Ultimate load is 4 times the Working Load Limit.
