Automated Packaging Machine, Heat Sealing (10000pcs/Hour), WT-007BZJ Manufacturer

Automated Packaging Machine, Heat Sealing (10000pcs/Hour), WT-007BZJ

: http://card-equipment.com/5-1-automated-packaging-machine-heat-sealing-wt-007bzj.html

This automated packaging machine is a heat sealing equipment used for closing card packaging bags and pouches, suitable for a wide range of cards, such as packaging prepaid cards, game cards, IC cards, SIM cards, etc.

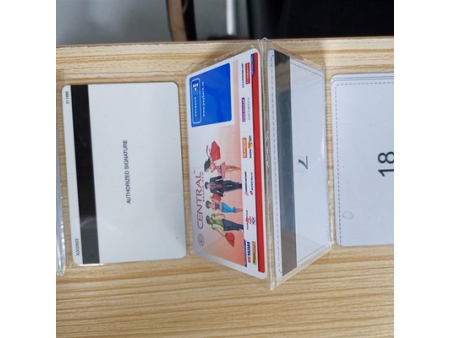

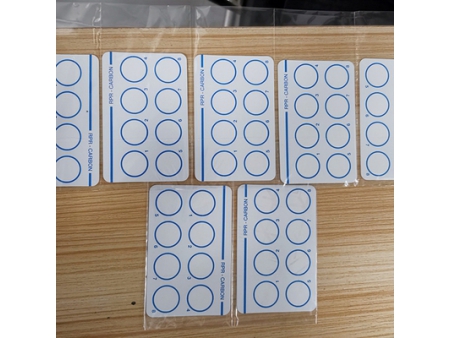

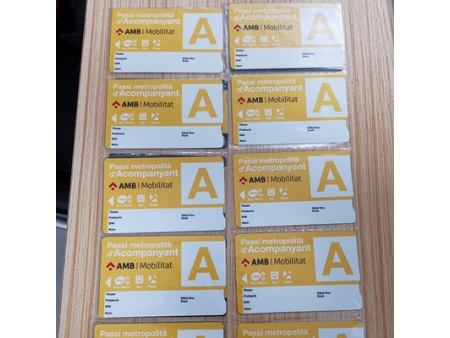

Samples

PVC cards
Game cards
Paper cards

Specifications

Power supply	AC 380V/50 HZ	Card size	Customized
Total power	3.0KW	Control	PLC control servo/stepper motor
Air source	6 kg/cm²	Operators needed	1
Air consumption	Approx. 30L/min	Dimension	L2400W1500H1700MM
Packaging film material	BOPP film, etc.	Packaging film thickness	0.025mm~0.035mm
Sealing method	Heat sealing	Productivity	10000PCS/H
Card materials	Paper card, PVC, ABS, PET, PVC/ABS composite materials, etc.	Productivity	10000PCS/H

Productivity: 10000PCS/H
Card size: Customized
Card materials: Paper card, PVC, ABS, PET, PVC/ABS composite materials, etc.
Packaging film material: BOPP film, etc.
Packaging film thickness: 0.025mm~0.035mm
Sealing method: Heat sealing
Dimension: L2400*W1500*H1700MM
Power supply: AC 380V/50 HZ
Total power: 3.0KW
Control: PLC control servo/stepper motor
Air source: 6 kg/cm²
Operators needed: 1
Air consumption: Approx. 30L/min

Features

Combining functions of film unwinding, card feeding, card packaging, and card collection;
Suitable for paper cards and PVC cards with thickness over 0.15mm;
Utilizing BOPP film with thickness over 0.025mm;
Heat sealing process provides high operation speed and reliable closure;
Automatic inspection of card shortage and double pieces in each package, the machine will immediately stop and actuate alarm when any fault occurs;
Individual packaging or continuous strip packaging of cards are available, the quantity of cards in collection section can be pre-set;
Dual sealing molds are adopted for higher efficiency, which are easy to changeover, packaging bag size is adjustable;
Machine vision inspection system is optional, it can inspect and read serial number and barcode of cards;

Details

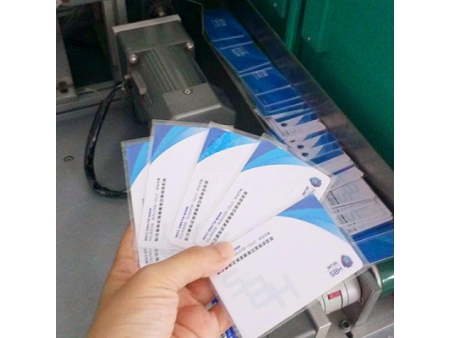

Feeding unit

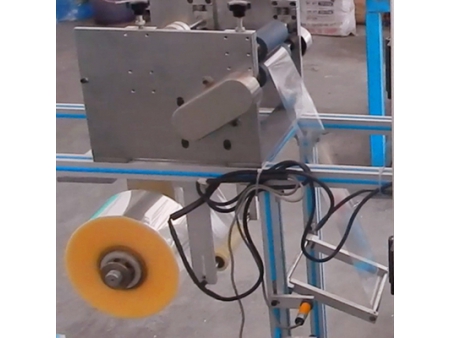

Film unwinding unit

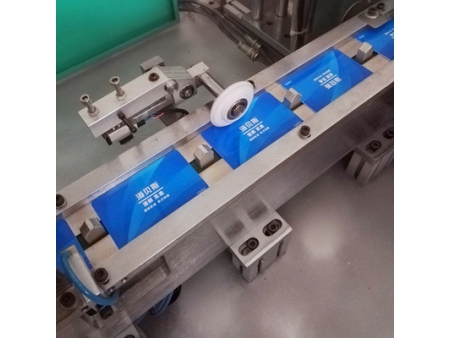

Card distributing unit
Card collection unit
