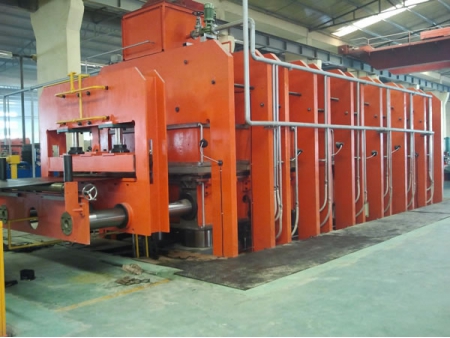

Vulcanizer/ Belt Vulcanizer/ Conveyor Belt Machine

Application:
The conveyor belt vulcanizing machine is designed to vulcanize conveyor belts including nylon conveyor belts, fire-proof conveyor belts, wire rope conveyor belts, etc. The vulcanizer is highly automated and compact.

Features:
1. The main machine is equipped with a special purpose hydraulic unit. Both the hot plates and piston plunger are all made of superior materials.
2. PLC control system so as to realize multi program automatic control of the curing process. For example, the temperature of the hot plates can be measured and regulated automatically. This will improve the control level and provide high efficiency during production.
3. We can design and manufacture all kinds of non-standard conveyor belts.

Main Technical Parameters:
Version Parameters XLB-1400 x5700x2 XLB-1400 x10000x1 XLB-1600 X10000x2 XLB-1800 x8000x2 XLB-1800 x12000x2 XLB-2000 x10000x1
Platen size (LXW) (MN) 1400 x5700 1400 x10000 1600 X10000 1800 x8000 1800 x12000 2000 x10000
Total pressure MN 25.00 49.00 56.00 51.00 74.00 70.00
Pressure unit of plate (Mpa) 3.13 3.5 3.5 3.54 3.4 3.5
Ram diameter (mm) 360 450 450 600 500 600
Quantity of ram (mm) 10 20 18 12 18 16
Max. ran stroke (mm) 400 300 400 600 400 300
Clamping force (mm) 0.72 0.90 1.20 1.20 1.20 1.20
Tensioning force (MN) 0.60 0.80 1.10 1.00 1.10 1.00
Steam pressure (Mpa) 0.63 0.63 0.63 0.63 0.63 0.63
Pressure of cooling water (Mpa) 0.3 0.3 0.3 0.3 0.3 0.3
Control form PLC PLC PLC PLC PLC PLC
Overall dimensions Length 5700 10000 1000 2700 2000 10000
Width 2350 2400 2660 8000 12900 3100
Height 4170 3580 4120 4500 3930 4400
