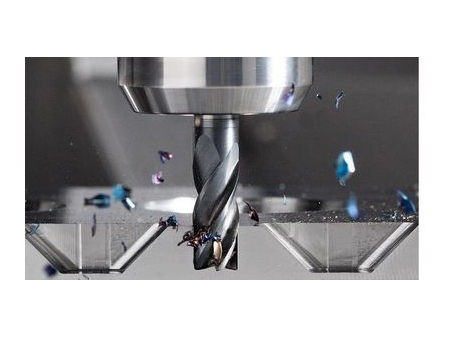

EMD01 Carbide, Square 4 Flute for Stainless steels - Economical Type
- Designed to machine low hardness materials (under HRc40) including stainless steel, alloy steel, carbon steel, prehardened steel
- 4D flute, variable helix design (Approx. 37°) for improved slotting and roughing
Application
Product Specifications
| Coating | AITiN /TiAlN | Work Material | Stainless Steels and others |
| Helix Angle | 35° | Shank | Cylindrical H6 |
| Material | IMC™ UMG Carbide Rod | Tolerance on Cutting Diameter | 0-0.030 |
Carbide End Mill, Square, 4 Flutes - Slotting（UNT-EMD01) - Economical Type
| UNT EDP # Click to Order | Mill Dia. D1 | Shank Dia. D2 | Flute Length L1 | O.A.L. L2 | Flutes |
| EMD01010 | 1.0 | 4 | 3 | 50 | 4 |
| EMD01015 | 1.5 | 4 | 4 | 50 | 4 |
| EMD01020 | 2.0 | 4 | 6 | 50 | 4 |
| EMD01025 | 2.5 | 4 | 6 | 50 | 4 |
| EMD01030 | 3.0 | 4 | 8 | 50 | 4 |
| EMD01040 | 4.0 | 4 | 11 | 50 | 4 |
| EMD010306 | 3.0 | 6 | 8 | 50 | 4 |
| EMD010406 | 4.0 | 6 | 11 | 50 | 4 |
| EMD01050 | 5.0 | 6 | 13 | 50 | 4 |
| EMD01060 | 6.0 | 6 | 16 | 50 | 4 |
| EMD01070 | 7.0 | 8 | 20 | 60 | 4 |
| EMD01080 | 8.0 | 8 | 20 | 60 | 4 |
| EMD01090 | 9.0 | 10 | 25 | 75 | 4 |
| EMD01100 | 10.0 | 10 | 25 | 75 | 4 |
| EMD01120 | 12.0 | 12 | 30 | 75 | 4 |
| EMD01140 | 14.0 | 14 | 30 | 90 | 4 |
| EMD01160 | 16.0 | 16 | 40 | 100 | 4 |
| EMD01200 | 20.0 | 20 | 40 | 100 | 4 |
• Non-standard size or product parameters not listed above, can be customized according to customer needs.
