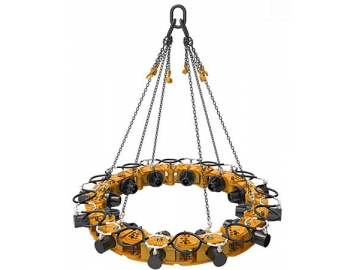

1. Our SPA5/SPA6/SPA8 Series Round Hydraulic Pile Breaker filled the domestic gap of foundation pile crushing machine, and become the leader in China. It concentrates our five patented technologies in one body. 2. The machine has the modular design, so it can be fit to crush the piles that have different diameters. 3. Its applicable scope is really extensive. It can be hung to a variety of large construction equipment to work. 4. The pile breaker can be operated by only one or two operators, which can greatly reduce the labor cost. 5. The piles can be crushed wholly, and the extra construction of energy can be saved. 6. The pendant chain is adjustable, so the machine can apply to different terrains. 7. The adoption of hydraulic pressure system makes the whole work process almost silent. 8. The assembling and disassembling of our pile breaker can be quite convenient, and the transportation can be pretty safe.
The operation steps of pile breaker 1. According to the pile diameter, and related reference parameters, the operator can decide the number of modules, and directly connect our machine to work platform via the changing joint easily. 2. Place the pile breaker onto the head section of target pile. 3. Adjust the pile crusher to the suitable height, and clamp exactly the point to be cut. Please refer to the construction parameter list when you use the machine for the first time, or there will be risk of chain breakage. 4. Adjust the pressure of hydro-cylinder in accordance to the intensity of concrete. Don't stop pressing until the target concrete pile breaks under the high pressure. 5. After the pile is cut, elevate the cut part directly by the hoisting power of terrace. 6. Move the cut pile to the appoint position.
SPA5 Hydraulic Pile Breaker
Specification (a group of 12 modules )
Model
SPA5
Range of Pile diameter (mm)
Ф950-Ф1050
Maximum Drill rod pressure
320kN
Maximum stroke of hydraulic cylinder
150mm
Maximum pressure of hydraulic cylinder
34.3MPa
Maximum flow of single cylinder
25L/min
Breaking capacity/8h
60
Height for cutting pile each time
≦300mm
Supporting the digging machine Tonnage (excavator)
≧20t
One-piece module weight
110kg
One-piece module size
604x594x286mm
Work status dimensions
Ф2268x2500
Total pile breaker weight
1.5t
Construction's Parameters
Module numbers
Diameter range (mm)
Platform weight(t)
Total pile breaker weight(kg)
Height of single crush pile(mm)
7
300-400
12
920
300
8
450-500
13
1030
300
9
550-625
15
1140
300
10
650-750
18
1250
300
11
800-900
21
1360
300
12
950-1050
26
1470
300
SPA6 Hydraulic Pile Breaker
Specification (a group of 12 modules )
Model
SPA6
Range of Pile diameter (mm)
Ф1700-Ф1850
Maximum Drill rod pressure
690kN
Maximum stroke of hydraulic cylinder
180mm
Maximum pressure of hydraulic cylinder
34.3MPa
Maximum flow of single cylinder
25L/min
Cut the number of pile/8h
40-100
Height for cutting pile each time
≦300mm
Supporting the digging machine Tonnage (excavator)
≧35t
One-piece module weight
280kg
One-piece module size
908x680x380mm
Work status dimensions
Ф3200x3000
Total pile breaker weight
3.7t
Construction's Parameters
Module numbers
Diameter range (mm)
Platform weight(t)
Total pile breaker weight(kg)
Height of single crush pile(mm)
6
500-650
15
1970
300
7
700-850
20
2250
300
8
900-1050
25
2530
300
9
1100-1250
26
2810
300
10
1300-1450
30
3090
300
11
1500-1650
30
3370
300
12
1700-1850
35
3650
300
13
1900-2050
35
3930
300
SPA8 Hydraulic Pile Breaker
Specification (a group of 13 modules)
Model
SPA8
Range of Pile diameter (mm)
Ф1800-Ф2000
Maximum Drill rod pressure
790kN
Maximum stroke of hydraulic cylinder
205mm
Maximum pressure of hydraulic cylinder
34.3MPa
Maximum flow of single cylinder
25L/min
Cut the number of pile/8h
30-100
Height for cutting pile each time
≦300mm
Supporting the digging machine Tonnage (excavator)
