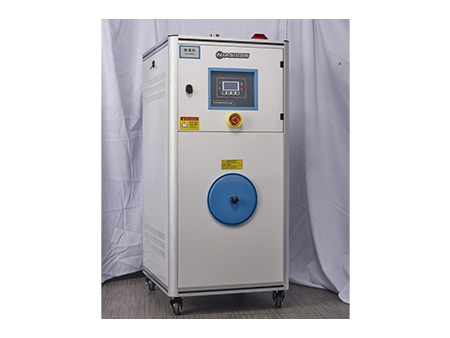

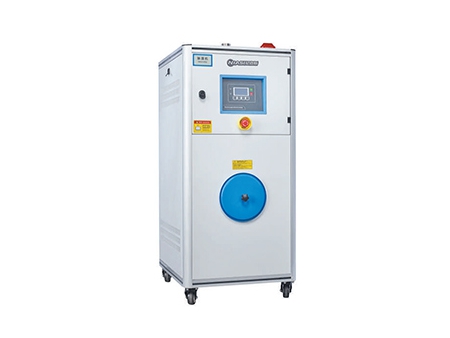

Honeycomb Dehumidifier

: http://conveyingsolution.com/5-1-nd-honeycomb-dehumidifier.html

Mold temperature controller is the key to optimize your injection molding and operation productivity

Features:

Can provide dehumidified dry air with a dew-point of -40℃, drying air capactiy of 50-1000m3/hr
PID temperature control

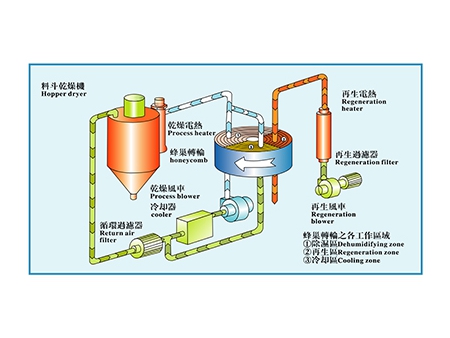

Filter is mounted outside honeycomb rotor
Surface coating provides this dehumidifier with excellent appearance and reliability
Equipped with castors, easy to move

Specification:

Model	unit	ND-50	ND-80	ND-120	ND-150	ND-200	ND-300	ND-400	ND-500	ND-700	ND-1000	ND-1500	ND-2000	ND-3000
Dehumidifying air capacity	CMH	50	80	120	150	200	300	400	500	700	1000	1500	2000	3000
Dehumidifying motor power	KW	0.55	0.55	0.75	1.1	1.5	2.2	3	5.5	7.5	9	18	26	39
Regeneration motor power	KW	0.18	0.18	0.25	0.37	0.55	0.75	0.75	1.5	2.2	2.4	3.4	5.5	7.5
Regeneration heater power	KW	2	2.7	3.5	4	4	6	6	9	15	15	20	20	30
Pipe diameter	inch	2	2	2	2.5	2.5	3	3	3	6.5	6.5	6.5	6.5	6.5
Rotor motor power	W	15					40			60	80		120
Total power	KW	3.25	3.45	5.1	7.1	7.5	10	10.8	22	24.8	26.5	41.5	51.6	76.7
Wire specification	mm2	4×4					4×6		4×10	4×10	4×10	4×16	4×25	4×35
Dimension	W(mm)	570	620	620	620	620	620	1000	1000	1000	1000	1350	1550	2160
	Dmm)	780	820	820	820	940	940	1300	1300	1300	1400	1450	1650	1600
	H(mm)	1400	1400	1400	1400	1720	1720	1900	1900	1900	1900	2300	2400	2500
Cooling water flow	GPM	3							9			25
Cooling water pipe size	inch	3/4			1							1.5
Weight	KG	150	215	265	272	392	405	575	650	880	880	950	1050	1130

Drying capacity

Raw material	Drying temperature	Drying time	Specific heat	Specific gravity of raw material	Moisture content before dehumidifying	Moisture content after dehumidifying	Drying capacity
Raw material	Drying temperature	Drying time	Specific heat	Specific gravity of raw material	Moisture content before dehumidifying	Moisture content after dehumidifying	ND-30	ND-50	ND-80	ND-120	ND-150	ND-200	ND-300	ND-400	ND-500	ND-700	ND-1000	ND-1500	ND-2000	ND-3000	ND-4000
ABS	80	2-3	0.34	0.6	0.3	0.02	11	18	27	35	71	200	180	210	285	355	425	710	1065	1500	1600
CA	75	2-3	0.5	0.5	1	0.02	9	15	22	30	60	105	150	180	235	295	355	590	885	1200	1330
CAB	75	2-3	0.5	0.5	0.8	0.02	9	15	22	30	60	90	150	180	235	295	355	590	885	1200	1330
CP	75	2-3	0.6	0.6	1	0.02	11	18	27	35	71	90	180	210	235	355	425	710	1060	1500	1600
LCP	150	4	0.6	0.6	0.04	0.02	8	13	20	27	55	106	135	160	210	265	320	530	800	1150	1200
POM	100	2	0.35	0.6	0.2	0.02	16	27	40	53	105	80	265	320	425	530	640	1060	1600	1800	2400
IONOMER	90	3-4	0.55	0.5	0.1	0.04	7	11	17	22	44	160	111	133	177	220	265	442	663	750	1000
PA6/6.6/6.10	75	4-6	0.4	0.65	1	0.05	6	10	14	19	38	66	96	115	153	192	230	383	575	960	1040
PA11	75	4-5	0.58	0.65	1	0.05	7	12	17	23	46	58	115	138	184	230	275	460	690	780	1150
PA12	75	4-5	0.28	0.65	1	0.05	7	12	17	23	46	69	115	138	184	230	275	460	690	780	1150
PC	120	2-3	0.28	0.7	0.3	0.01	13	21	31	41	83	69	206	250	330	413	495	826	1238	1400	1860
PU	90	2-3	0.45	0.65	0.3	0.02	11	19	29	38	77	124	190	230	307	383	460	767	1150	1530	2080
PBT	130	3-4	0.3-0.5	0.7	0.2	0.02	9	15	23	31	62	115	155	186	248	310	372	620	930	1100	1600
PE	90	1	0.55	0.6	0.01	< 0.01	32	53	80	106	212	93	531	637	850	1065	1275	2125	3185	3600	4800
PEI	150	3-4	0.6	0.6	0.25	0.02	8	13	20	27	53	318	133	160	212	265	320	530	800	1030	1370
PET	160	4-6	0.3-0.5	0.85	0.2	0.05	8	13	19	25	50	80	125	150	200	250	300	500	750	1150	1360
PETG	70	3-4	0.6	0.6	0.5	0.02	8	13	20	27	53	75	133	160	212	265	320	530	800	1030	1370
PEN	170	5	0.85	0.85	0.1	0.05	9	15	23	30	60	90	150	180	240	300	360	600	900	1150	1360
PES	150	4	0.7	0.7	0.8	0.02	9	15	23	30	60	90	150	180	240	630	360	600	900	1050	1400
PMMA	80	3	0.65	0.65	0.5	0.02	11	19	29	38	77	115	190	230	310	385	460	765	1150	1530	1730
PPO	110	1-2	0.4	0.5	0.1	0.04	13	22	33	44	88	133	220	265	355	440	530	885	1330	1730	2660
PPS	150	3-4	0.6	0.6	0.1	0.02	8	13	20	27	53	80	133	160	212	265	320	530	800	1030	1370
PU	120	2	0.27	0.6	0.4	0.02	16	27	40	53	105	160	265	320	425	530	640	1060	1600	1800	2400
PP	90	1	0.46	0.5	0.1	0.02	26	44	66	88	180	265	442	530	710	885	1060	1770	2655	3500	4000
GP(GP)	80	1	0.28	0.5	0.1	0.02	26	44	66	88	180	265	442	531	708	885	1062	1770	2655	3500	4000
PSU	120	3-4	0.31	0.65	0.3	0.02	8	14	22	29	60	85	145	173	230	290	345	575	865	1300	1485
PVC	70	1-2	0.2	0.5	0.1	0.02	13	22	33	44	90	135	220	265	355	442	530	885	1330	1730	2660
PAN(AS)	80	1-2	0.32	0.5	0.1	0.05	13	22	33	44	90	135	220	265	355	442	530	885	1330	1730	2660
TPE	110	3	0.7	0.7	0.1	0.02	13	20	30	40	85	125	205	250	330	413	495	826	1238	1650	1860
