Screw Air End, Rotorcomp NK
Unique and reliable
Rotorcomp unique series of EVO-NK compact units are oil-injected screw compressor modules that integrate the main parts of a compressor system. This solution is the best possible way to build a reliable, compact and cost efficient complete compressor package with ultimate efficiency, low noise and the highest quality standards.
- Rotorcomp screw integrated air end for screw compressor
- ISO / TUV certificates
- Made in Germany 100% with unique high-efficient upgraded technology
- High operation reliability – designed for industrial applications and continuous operation;
- Includes all the advantages of our new built-in EVO® technology;
- Each compact unit is tested as a complete system before leaving our factory;
- No leakages due to reduced piping and connections as well as sealing with O-rings (Viton®);
- Optimized compact design with very low space requirements;
- Simplified service and maintenance as all components are easily accessible from one side without special tools;
- Reduced engineering, manufacturing and logistic costs for your compressor package compared to conventional compressor systems with an air end and separate components;

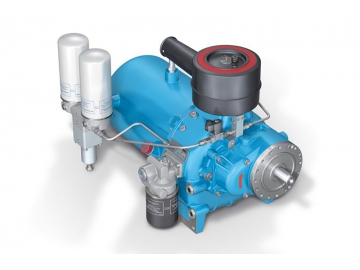

The ROTORCOMP compact screw unit is an oil-injected screw compressor with positive displacement, for installation within packaged air compressors.
The NK-unit is suitable for electric-, diesel- and hydraulic drive (i.e. for the construction industry).
Parameters
- Power: 15kW
- Max. capacity: 1.5m3/min
- Max. pressure: 15bar
- Max. speed: 7800l/min
- Unit weight: 39kg
Integrated in NK Air end, intake valve, oil separator, oil filter, oil filter head, minimum pressure valve, separator head, oil sight glass, ROTORCOMP pilot valve
ROTORCOMP accessories: air / oil coolers, thermo valve, fans, V-belt pulleys, safety valves.

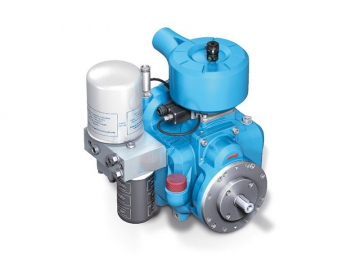

The ROTORCOMP compact screw unit is an oil-injected screw compressor with positive displacement, for installation within packaged air compressors. The NK-unit is suitable for electric-, diesel- and hydraulic drive (i.e. for the construction industry).
Parameters
- Power: 30kW
- Max. capacity: 4.5m3/min
- Max. pressure: 15bar
- Max. speed: 7500l/min
- Unit weight: 96kg
Integrated in NK Air end, intake valve / pilot valve, air filter, oil separator, oil filter / oil filter head, thermo valve, minimum pressure valve, separator head, DOM-cartridge
ROTORCOMP accessories: oil sight glass, air / oil coolers, fans, V-belt pulleys, safety valves, combistats.
The ROTORCOMP compact screw unit is an oil-injected screw compressor with positive displacement, for installation within packaged air compressors. The NK-unit is suitable for electric-, diesel- and hydraulic drive (i.e. for the construction industry).
Parameters
- Power: 45kW
- Max. capacity: 7.0m3/min
- Max. pressure: 15bar
- Max. speed: 6400l/min
- Unit weight: 150kg
Integrated in NK Integrated in NK: Air end intake valve / pilot valve, air filter / air filter housing, oil separator, oil filter / oil filter head, thermo valve, minimum pressure valve, separator head, DOM-cartridge.
