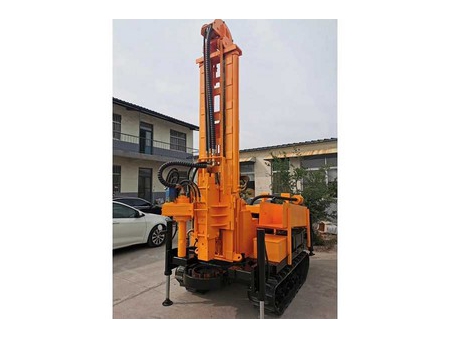

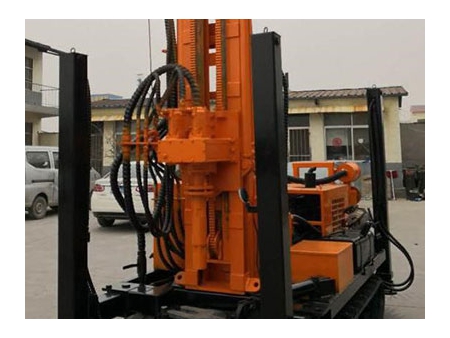

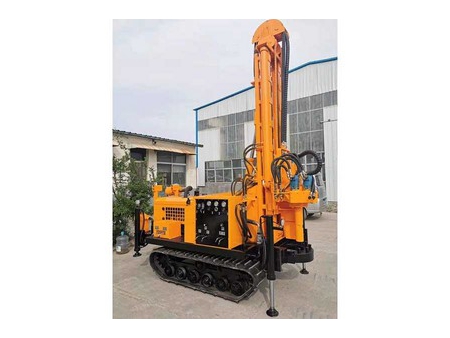

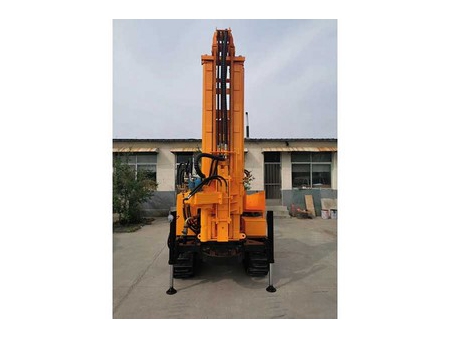

KS150R Water Well Drilling Rig
KS150R water well drilling rig is equipped with a diesel engine and hydraulic oil pump to power its traveling, turning, propulsion and lifting. During the water well drilling rig operation, only the hammer consumes compressed air.
Brief parameters
Drilling Depth:150m
Drilling Diameter:130-219mm
Diesel Engine Power:42kW
Application
This KS150R geothermal drilling rig is applicable to drilling projects of various industrial mining enterprises, such as deep water well projects, domestic water well projects, agricultural well projects, and geothermal air conditioning wells projects.
This drilling machine can also follow the wall forming process to drill wells by using the casing, and it adapts to various geological conditions. It comes with a small size, advanced technology, easy and flexible operation.
Features

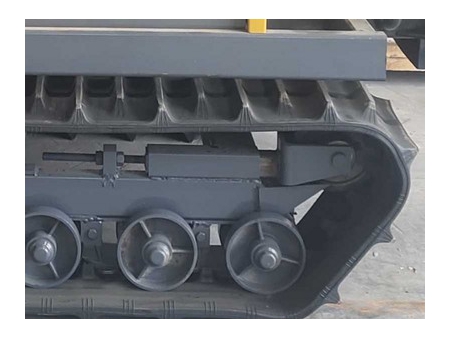

1.This water well drilling rig has a crawler chassis, providing strong off-road performance.
2.Independent modular design allows it to be mounted on a truck for improved mobility.
3.Two rotary and travelling speeds enable the drilling rig to meet the different drilling requirements of the soil and rocks.
4.Combined positioner: the positioning parts can be adjusted and changed according to the types of drill pipe and downhole hammer, ensuring reliable and accurate positioning.
5.The lifting device is convenient for lifting the drill pipe and hammer, reducing labor intensity.
| Model (crawler type) | KS150R (Rubber track /) |
| Weight | 4000 kg |
| Dimension | 4000*1500*2150 mm |
| Drilling hole diameter | 130-219 mm |
| Drilling depth | 150 m |
| Feed stroke | 3000 mm |
| Travelling Speed | 2 km/h |
| Climb capacity (Max) | 25° |
| Ground clearance | 250 mm |
| Working pressure | 1.45-2.5 Mpa |
| Air consumption | 15-27 m³/min |
| Power | 42 kW |
| Brand of diesel engine | Yunnei |
| Rotation speed | 38-55 rpm |
| Rotation torque | 3200-3800N.m |

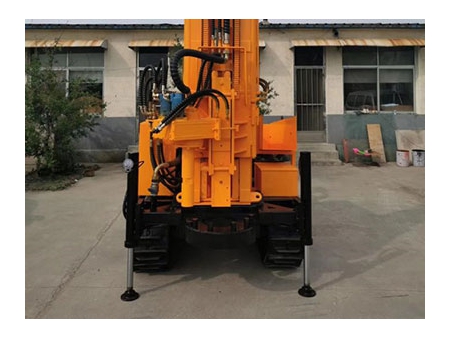

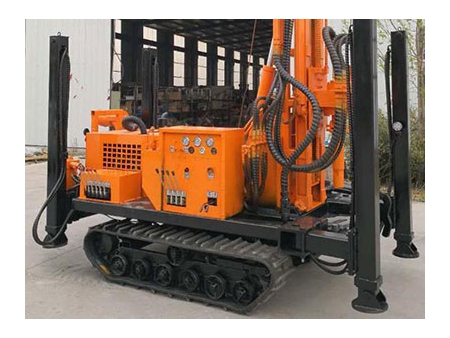

Optional strong hydraulic leg and winch
1.Recommended drill tool

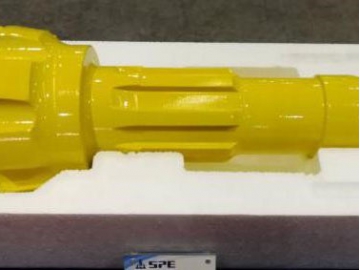

| Drill bit diameter | 110-205mm |

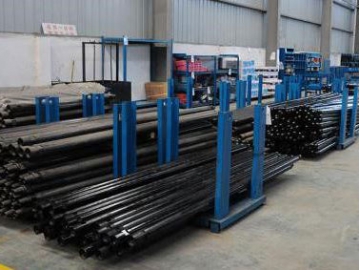

| Drill pipe Diameter*Length | 76/89*3000 |

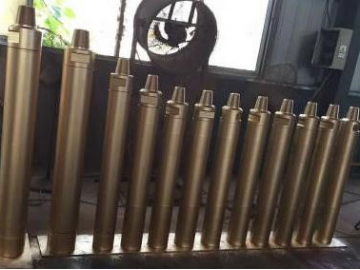

| Drill hammer | HD45 / HD55 / HD65 |
