Air Cooled Chiller

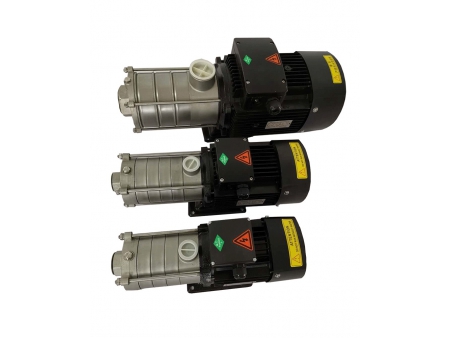

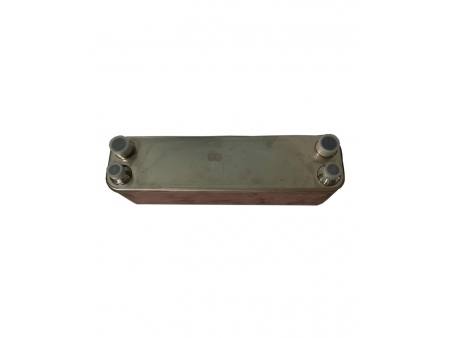

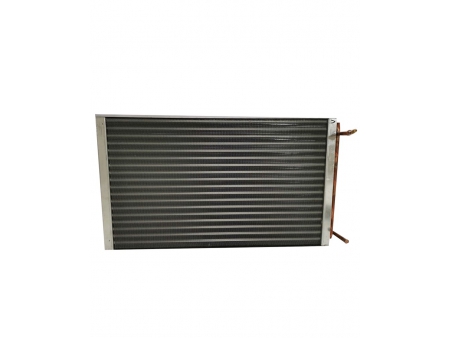

The entire air cooled chiller 304 stainless steel multistage pump 316 stainless steel plate evaporator aluminum finned tube condenser.
Features
- Branded and reliable compressor with built-in safety protection devices: it features a low noise, high durability and energy efficiency.
- Alco thermostatic expansion valves.
- The condenser and evaporator are made using 316 stainless steel plate heat exchangers to increase the cooling efficiency by 30%.
- The water tank, piping and pump are made SUS304 stainless steel, and feature an exceptional resistance to corrosion and pressure, ensuring they each have an exceptional durability and reliability.
- The microcomputer-based control system automatically controls and monitors machine operations with an excellent stability, high precision and low failure rate.
- Alarms and protections for the refrigerant over high or low pressure, compressor motor overload, abnormal refrigeration, abnormal coolant fluid temperature, temperature probe disconnection, phase reversal or loss.
- Durable high-pressure and large-flow stainless steel magnetic pumps offer a uniform temperature and enhance production stability.
Technical specifications
| Model Item | YK-CWF-3 | YK-CWF-5 | YK-CWF-8 | YK-CWF-10 | ||||||
| Temperature range | 5-25℃ | |||||||||
| Cooling medium | Water | |||||||||
| Cooling capacity (KW×50Hz) | 10℃ | 7.5 | 12.6 | 19.0 | 26.0 | |||||
| 15℃ | 9 | 14.5 | 22.0 | 29.5 | ||||||
| Compressor | Rated power（KW） | 2.2 | 3.7 | 6 | 7.5 | |||||
| Refrigerant | R22 R407C R410A | |||||||||
| Evaporator | Type | Stainless steel plate evaporator | ||||||||
| Condenser | High efficiency aluminum brazed finned tube condenser | |||||||||
| Cooling fan | Power（KW） | 0.24*1 | 0.38*1 | 0.38*2 | 0.38*2 | |||||
| Air flow（m/h） | 4000 | 6000 | 6000*2 | 6800*2 | ||||||
| Water tank capacity（L） | 60 | 120 | ||||||||
| Process pump | Rated output power（KW） | 0.55 | 0.75 | 1.5 | ||||||
| Max. pressure（MPa） | 0.35 | 0.36 | 0.37 | |||||||
| Max. flow（L/min） | 50 | 90 | 150 | |||||||
| Total power（KW） | 3 | 4.9 | 8.3 | 9.8 | ||||||
| Breaker capacity（A） | 25(200V, 3P) | 40(200V, 3P) | 63(200V, 3P) | 100(200V, 3P) | ||||||
| 25(380V, 3P) | 25(380V, 3P) | 32(380V, 3P) | 32(380V, 3P) | |||||||
| Supply Voltage | AC200V±10%/ 60Hz 3P AC380V±10% 50Hz 3P | |||||||||
| Alarms | Refrigerant over high or over low pressure, compressor or process pump overload, abnormal refrigeration, abnormal temperature of coolant fluid, temperature probe disconnection, phase reversal or loss | |||||||||
| Dimensions（W×D×Hmm） | 1100*540*1000 | 1300*640*1150 | ||||||||
Technical specifications
| Model Item | YK-CWF-15 | YK-CWF-20 | |
| Temperature range | 5-25℃ | ||
| Cooling medium | Water | ||
| Cooling capacity (KW×50Hz) | 10℃ | 38.8 | 52.0 |
| 15℃ | 44.1 | 59.0 | |
| Compressor | Rated power（KW） | 11.25 | 7.5×2 |
| Refrigerant | R22 R407C R410A | ||
| Evaporator | Type | Stainless steel plate evaporator | |
| Condenser | High efficiency aluminum brazed finned tube condenser | ||
| Cooling fan | Power（KW） | 0.8*2 | 0.9*2 |
| Air flow（m/h） | 12200*2 | 15670*2 | |
| Water tank capacity（L） | 200 | 250 | |
| Process pump | Power（KW） | 2.2 | 2.4 |
| Max. pressure（MPa） | 0.5 | 0.45 | |
| Max. flow（L/min） | 200 | 266 | |
| Weight（Kg） | 650 | 800 | |
| Total power（KW） | 15 | 19 | |
| Breaker capacity（AT） | 125(200V, 3P) | 200(200V, 3P) | |
| 63(380V, 3P) | 63(380V, 3P) | ||
| Supply voltage | AC200V±10%/ 60Hz 3P AC380V±10% 50Hz 3P AC380V±10% | ||
| Alarms | Refrigerant over high or over low pressure, compressor or process pump overload, abnormal refrigeration, abnormal temperature of coolant fluid, temperature probe disconnection, phase reversal or loss | ||
| Dimensions（W×D×Hmm） | 1310*700*1400 | 1600*800*1800 | |
Standard air-cooled chiller models are shown above. Yikai also offers customized options to meet customer expectations. to meet your expectations.
