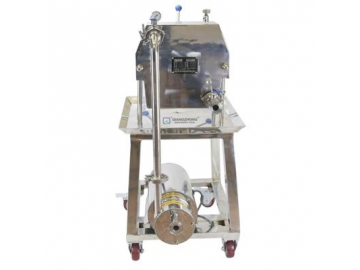

Filter Press
The frame filter is batch solid-liquid separation equipment, and the filter chamber is formed through an arrayed filter plate and filter frame. Using pump pressure, materials are sent to the filter chamber, and achieve solid-liquid separation through the filtering medium.
The filtration area of this equipment has a flexible choice range, with a high filter driving force, a high dehydration rate, and a mud cake moisture content of 70-85%. This equipment is adaptable to various materials, thus making it ideal for a variety of fine material separation.
Parameter:| Model | Filter area（㎡） | Filter plate size（mm） | Filter plate thickness（mm） | Filter plate numbers | Filter chamber volume（Liter/cycle） | Oil pressure pump pu（HP） | Conveyor（HP） | External size L*W*H(mm） | ||
| CXA630 | 0.55×(N-1) | 630 | 50 | N | 7.40×(N-1) | 2 | 1/2 | N×(T+1)+1433 | 1020 | 921 |
| CXA800 | 0.91X(N-1) | 800 | 60 | N | 15×(N-1) | 3 | 1 | N×(T+1)+1887 | 1236 | 1000 |
| CXA1000 | 1.56×(N-1) | 1000 | 60 | N | 25×(N-1) | 5 | 3 | N×(T+1)+2428 | 1540 | 1350 |
| CXA1200 | 2.47×(N-1) | 1200 | 70 | N | 36.3×(N-1) | 7.5 | 5 | N×(T+1)+2702 | 1590 | 1575 |
| CXA1250 | 2.80×(N-1) | 1250 | 70 | N | 39×(N-1) | 7.5 | 5 | N×(T+1)+2702 | 1640 | 1625 |
| CXA1600 | 4.2×(N-1) | 1600 | 75 | N | 63×(N-1) | 10 | 7.5 | N×(T+1)+3490 | 2140 | 2150 |
| CXA2000 | 6.16 | 2000 | 80 | N | 122.8×(N-1) | 20 | 10 | N×(T+1)+4021 | 2620 | 2420 |
