2W-050-08 Gas and Liquid Solenoid Valve

: http://solenoidvalvecn.com

2W-050-08 Gas and Liquid Solenoid Valve

Features
1. The 2W-050-08gas and liquid solenoid valve is a valve for use with water, gasand oil.
2. Medium temperature: -10～100℃.
3. Acting pattern of the 2W-050-08 gas and liquid solenoid valve: direct acting.
4. Working pattern:normally closed.
5. Materials: stainless steel 316.
6. The 2W-050-08 gas and liquid solenoid valve is sealed by the EPDM.
7. Protection degree of the coils: encapsulate coil: IP65.
8. Voltage range: AC -15%～10% DC -10%～10%.

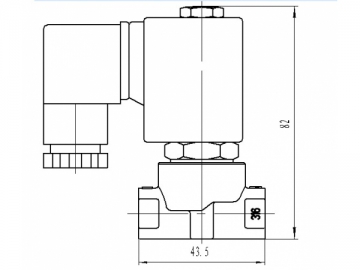

Technical Parameters of the 2W-050-08 Gas and Liquid Solenoid Valve

Model	Hole Diameter (mm)	Screw Thread G	Working Pressure (Bar)	Cv Factor	L	H
					(mm)	(mm)
2W-050-08	2	G1/4″	0～12	0.12	43.5	82
	3		0～8	0.19
	4		0～6	0.30
	5 (ever prepared)		0～5	0.38

Note: Please choose the VITON to seal the 2W-050-08 gas andliquid solenoid valve when the medium temperature is as high as 120℃.

YUYAO NO.4 INSTRUMENT FACTORY is a major manufacturerof gas solenoid valve, based in China. We offer various types of products such asliquid solenoid valve, stainless steel solenoid valve, plasticsolenoid valve and so on. Our productsare high quality and competitively priced. We can complete the full chain of manufacturing exhaust solenoid valve, highpressure solenoid valve, etc. right here in China. Our lower manufacturing cost can save yourpurchasing cost. A more detaileddescription of our product is shown on the page.
