The optical table can provide stable and horizontal support for fixing various optical elements.

  1. WN01HB
  2. WN02HB

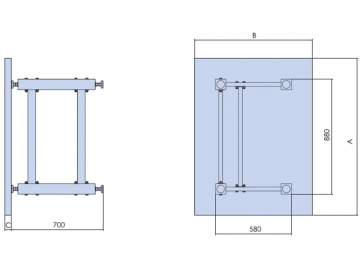

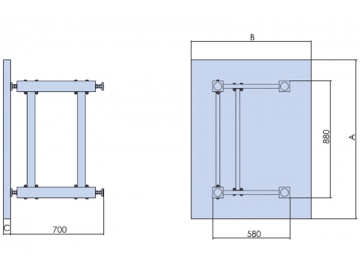

Parameter table of WN01HB Honeycomb Breadboard Workstations
Model Size Thickness (mm)(C) Hole distance(mm) Hole diameter Driving parallelism (mm) Weight (kg)
(mm)(AxB)
WN01HB300x300 300x300 50 25x25 M6 0.8 10
WN01HB300x600 300x600 50 25x25 M6 1 20
WN01HB300x900 300x900 50 25x25 M6 1.1 30
WN01HB300x1200 300x1200 50 25x25 M6 1.3 40
WN01HB600x600 600x600 50 25x25 M6 1.2 40
WN01HB600x900 600x900 50 25x25 M6 1.4 60
WN01HB600x1200 600x1200 50 25x25 M6 1.5 80
WN01HB900x900 900x900 50 25x25 M6 1.4 90
WN01HB900x1200 900x1200 50 25x25 M6 1.6 120
WN01HB900x2000 900x2000 50 25x25 M6 1.6 125
WN01HB1200x1200 1200x1200 50 25x25 M6 1.6 130
Features of WN01HB Honeycomb Breadboard Workstations
  • The table is made of ferromagnetic stainless steel, through special processing technology to ensure a higher flatness, good at astigmatism, not dazzling.
  • Magnetizable, and can be used to fix the device at any position with the help of magnetic base.
  • The tapped holes on the surface are M6, and hole pitch 25mm, easy to install the fixed device.
  • Double-layer structure, honeycomb support in the inner, increase rigidity, reduce weight and good vibration resistance.
  • Flatness: 0.8-1.6mm/m2
  • Roughness: 0.02-0.05 mm/m2
  • Natural frequency: 0.88-1.0Hz
  • Amplitude: <1μm
  • Horizontal Accuracy: 0.04mm/ m2
  • Work pressure: 0.2-0.5 (Mpa)

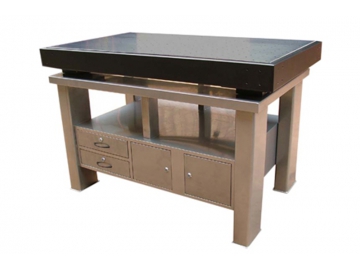

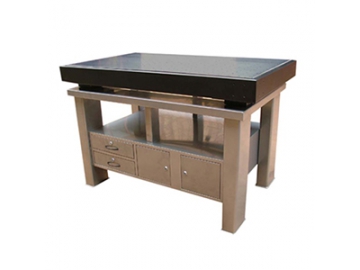

Parameter table of WN02HB series Honeycomb Breadboard Workstations
Model Size (mm) Thickness (mm) Hole distance (mm) Hole diameter Driving parallelism (mm)
WN02HB1200x800 1200x800 120 50x50 M6 0.1
WN02HB1500x1000 1500x1000 130 50x50 M6 0.2
WN02HB1800x1000 1800x1000 150 50x50 M6 0.3
Features of WN02HB Honeycomb Breadboard Workstations
  • The table is made of stainless steel and the surface is treated with brushed finish, equipped with a vibration isolation function support.
  • Magnetizable, and can be used to fix the device at any position with the help of magnetic base.
  • The holes on the surface are M6, and holes distance 50mm, easy to install the fixed device.
  • Double-layer structure, honeycomb support in the inner, increase rigidity, reduce weight and good vibration resistance.
  • Flatness: 0.10-0.30mm/m2
  • Roughness: 0.8-1.6μm
  • Natural frequency: 2.5-8Hz
  • Amplitude: 1-3μm
