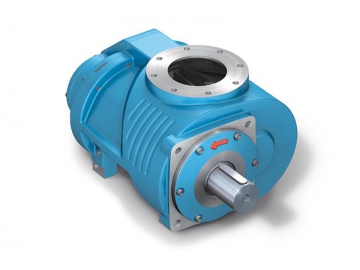

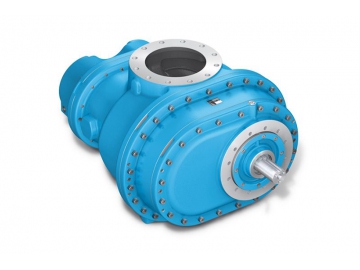

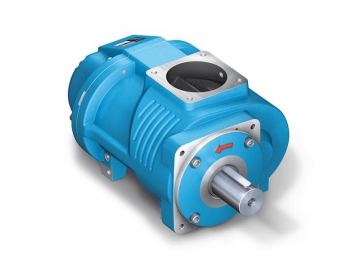

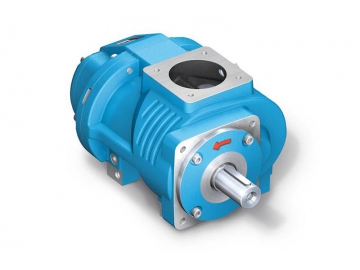

Screw Air End, Rotorcomp EVO

Screw Air End, Rotorcomp EVO
Screw Air End, Rotorcomp EVO
Screw Air End, Rotorcomp EVO
Screw Air End, Rotorcomp EVO
Screw Air End, Rotorcomp EVO
Request a Quote

Rotorcomp oil-injected screw air ends create the heart of your compressor system. Used with our wide range of components, you can build the perfect compressor package with ultimate efficiency, low noise, at the highest quality standards.

Request a quote
  • Advantages
  • Parameter
Advantages of Our EVO® Technology
  • New Rolling Profile® – ultimate efficiency with reduced noise;
  • Long life cycle due to increased bearing dimensions and wear-free ROLLING PROFILE®;
  • Wide operating pressure range from 5 to 15 bar;
  • High quality manufacturing and assembling – “Made in Germany”;
  • Quality assurance – bench test of every air end before leaving our factory;
  • Easy application selection with our new ROTORCOMP® SIZING AIR software
  • Highest flexibility for your package design
    Suitable for all types of drive motors
    Drive options: Belt drive, direct drive, internal gear drive
    Base and face-flange mounting
Parameter
Model Recommended motor Power min.-max. Max. flow rate at 7 bar / 100 psig Pressure range min.-max. Net weight
kW hp m3/min cfm bar psig kg lbs
EV02
3.0-11.0 5-15 1.6 60 5-15 70-220 15 33
EV03
5.5-18.5 10-25 2.8 100 5-15 70-220 21 46
EV06
15-37 20-50 5.5 200 5-15 70-220 45 99
EV09
22-55 30-75 8.4 300 5-15 70-220 68 150
EV015
45-90 60-125 14.4 510 5-15 70-220 126 278
EV028
75-160 100-200 26 920 5-15 70-220 269 593
EV042
132-250 175-340 42 1,485 5-15 70-220 474 1,045
EV076
160-540 214-725 76 2,678 3.5-17 50-250 1,250 2,754
